Vacuum Membrane Press Machine With Pin System

Maximum quality of the finished product, extremely fast cycles, rapid processing changes and unmatched ease of use. coat 3D shaped panels with thermoformable plastic sheets (PVC, TRANSFER FOIL, etc.) or veneer to produce kitchen or bathroom cupboard doors, drawers, doors, tables, desks, etc.
Outlined size:
Maximum working height:
Actual power consumption:
  • TM-3000P-B

  • ZHT

  • TM-3000P-B

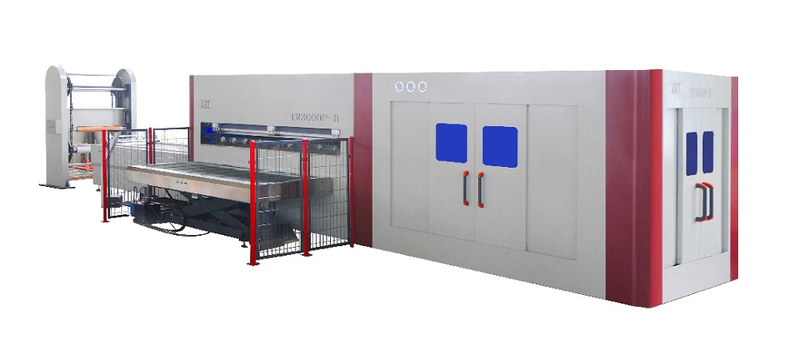

TM3000P—B Vacuum Membrane Press Machine With Pin System

General introduction

Maximum quality of the finished product, extremely fast cycles, rapid processing changes and unmatched ease of use.

coat 3D shaped panels with thermoformable plastic sheets (PVC, TRANSFER FOIL, etc.) or veneer to produce kitchen or bathroom cupboard doors, drawers, doors, tables, desks, etc.



1. High speed:

The working period for making ordinary and high glossy  workpieces is less than 2 minutes after it enters the main machine,

which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.

2. Good effect:

The product processed by common film has clear groove, no peeling off at sides, bubbling, no color difference,

and high light working surface has strong adhesion, and the effect reaches the international leading level.

3. Low energy consumption:

The total power of the model is 43KW, which is one half of that of the peer equipment;The main start heating  power is 18KW.

4. High configuration:

The key parts of the model adopt original ones from Germany, Japan and Taiwan, which is of high configuration and of stable performance.

5. High working efficiency:

The whole machine adopts automatic top block device. Compared with other domestic manufacturers, it saves the technological process of making the pads,

the cost of raw materials, saves the sequence of scanning pads, as well as the time of  lamination, greatly improves the working efficiency and reduces the labor cost.

6. High degree of automation:

The machine is equipped with automatic tilting rack for fabric selection, automatic film cutting device, automatic gasket device, laminating device of pressing machine,

pallet lifting device and finished product rollover collection device, etc., with high degree of automation, it has outstanding features like smooth and close process and one-stop film-covering process production.

The height of the top block can be selected 12, 15 and 18 mm, solving the issue that the high gloss sample blocks are not in place while laminating.


All models of ZHT are patented products, any counterfeit will be sued!

TM3000P-B (3)

TM3000P-B (4)


Performance Parameter


Outlined size


Worktable size


Maximum working height


Rated  pressure

positive pressure≤0.6Mpa, negative pressure≥-0.095Mpa

Total power


Actual power consumption


Total weight


Power voltage

Three-phase, 380v




Equipment maintenance

  every 3-6 months, the vacuum pump changes oil once, and the filter is cleaned every 15 working days;


How it works


  This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine

  •  Preheating equipment

  •  Put product on the workbench

  •  Pull the PVC membrane and cover cabinet door

  •  Cutting membrane

  •  Enter the machine

  •  The membrane floating up and heating

  •  Vacuum plus negative pressure plus positive pressure

  •  Release of positive and negative pressure

  •  Unloading hydraulic

  •  Drop workbench

  •  Workbench out

  •  Flipped board sucking sample up

  •  Cut membrane

  •  Work end

  This process is done automatically by one click


Silicone plate life

The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)


Energy consumption: The main heating starting power is 43KW, and the average power consumption is 18KW/h.

Dimensions: 13500mm×5500mm×2800mm

Total weight:  18T




1. In order to ensure that the demander can use the equipment normally, the warranty period is one year, except for consumables (pressure buckle, gas strut,Silicone rubber piece ,Limit switch).

The supplier will provide free warranty service during the warranty period, non warranty period provide free consultation and troubleshooting for repair, maintenance.

The warranty period is calculated from the day when the equipment is shipped.

2. The warranty does not include: damage caused by man-made and natural disasters. (such as fire, flood, earthquake)

3. If the equipment occurs error, The supplier shall provide free qualified parts and maintenance during the warranty period;

 outside the warranty period, the supplier shall provide the demand at a preferential price for a long time. The cost incurred by the supplier for maintenance shall be settled by both parties through negotiation

4. The supplier shall provide technical support to the demander to install and debug the equipment, and train the demander's personnel in practical operation, processing and maintenance.
