TM2580F
ZHT

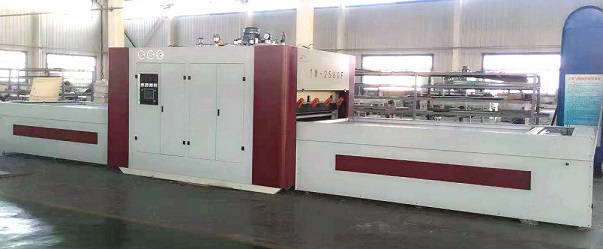

Furniture Vacuum Membrane Press Machine TM2580F for many types of furniture
Features
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
Technical parameter
Dimensions | 11200mm×2480mm×2150mm |
Bed dimension | 2560mm×1270mm |
Maximum machining height | 50mm |
Rated working pressure | positive pressure≤0.6Mpa negative pressure≥-0.095Mpa |
Total power | 28Kw |
Actual power consumption | about 10kw |
Total weight | 14T |
Power | 380V 50HZ |
Upgrade improvements
1. The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.
2. The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.
3. The lifting balance system is easy to adjust, and the rise and fall are more stable.
4. Hydraulic system oil port improvement and maintenance is more convenient.
5. The aluminum frame is processed by one body, and no weld seam increases the strength.
Workpiece display
