TM5000
ZHT

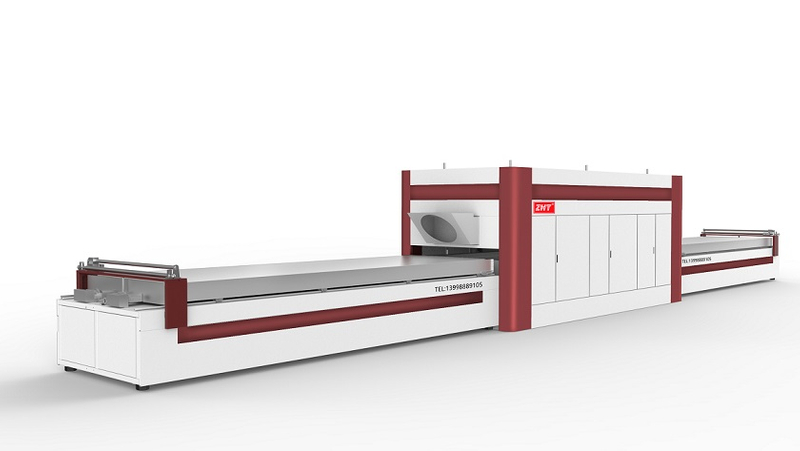

MDF Door Using Vacuum Film Coating Woodworking Machine
Feature:
1. High automation:
The machine is highly automated, easily operated with automatic feeding. Items of processing time, temperature during the process of manufacture, as well as vacuum degree shall be in the control of digital display instrument.
2. Good heat conductivity:
Aluminum plate shall be used for heating system, which is of high heat conduction for higher rate of finished products.
3. Innovative design:
The machine TM4500 comes out by our technicians out of properties of PVC film to solve the issue of failure to form and to repair one time by ordinary negative press machine.
4. High configuration:
The operation of drive system shall be done by chain drive, double reduction gear applied for feeding to avoid piece malposition, which shall lead to product waste; Electrical devices that imported with stable property shall be used for electrical system, equipped with two operating programs of high automation.
5. High working efficiency:
Heating by special craftsmanship on large bench, which highly improve product efficiency and save cost.
PARAMETER
Dimensions | 16000mm*2100mm*2000mm |
Bed dimension | 5000mm*1300mm |
Total power | 42.4KW |
Actual power consumption | 13KW |
Total weight | 7.3T |
Vacuum | ≤-0.095Mpa |
Properties
1. Select the brand Busch for vacuum pump, Schneider for electrical devices. High efficiency by film laminating on two plates one time on 5 m (inner diameter) bench with less film.
2. Maintenance: replace oil for vacuum pump every 3-6 months, clean filter every 15 days.
Parts that are easy to damage: gasket, limit switch (not covered by warranty)
Quality and Service are most important things for us
If you have any problem,please let us know
