TM3000F/P-S
ZHT
TM3000F-P/S

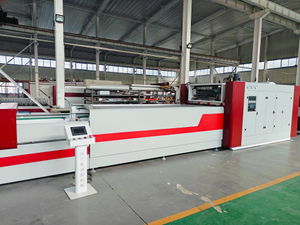

Product Description: Laser Automatic Scanning System Membrane Press Machine
1. Product Overview
This machine uses an advanced laser automatic scanning system, featuring high efficiency, precision, and low energy consumption. It is widely used in the positive and negative pressure membrane pressing process. Through laser scanning, automatic positioning, film stretching, and laminating operations, it achieves efficient and high-quality film processing, significantly improving production efficiency and reducing labor costs.
2. Key Features
High-efficiency Automation: After placing the workpieces in the working area and starting the scanning system, the laser scanning system automatically detects the position of the workpieces on the workbench. It then automatically adjusts the electromagnetic lift, flipping over the unoccupied backing block during the scanning process to achieve automatic positioning. The system proceeds with automatic film stretching and then enters the main unit for automatic lamination.
Fast Production Cycle: From the time the workpiece enters the machine until the completion of one cycle, it takes only 2 minutes, which is 2-4 times more efficient than conventional positive and negative pressure membrane pressing equipment.
Excellent Processing Quality: The processed products have smooth surfaces with no color difference, clear grooves, no edge opening, bubbling, or defects. The surface adhesion is strong and reaches international leading standards.
Low Energy Consumption: The total power of this machine is 39.5kW, which is about half the power consumption of similar equipment in the industry. The average power consumption is 12kW/h, making it energy-efficient.
High Configuration and Stability: Key components of the equipment are sourced from original manufacturers in Germany, Japan, and Taiwan, ensuring high configuration and stable performance, which guarantees long-term reliable operation.
High Work Efficiency: The machine uses an automatic top block system, eliminating the need for the backing plate production process that is required in other domestic machines. This saves on raw material costs and significantly improves work efficiency, while also reducing labor costs.
Reduced Labor Costs: This machine requires only 3-4 operators, which is half the number of operators needed for similar equipment (which typically requires 7 operators). The worktable positioning requires 2 people, the operation desk needs 1 person (can borrow 1 from the worktable), and 1 person is needed for edge trimming. In comparison, similar equipment requires 7 operators (2 for the worktable, 1 for the operation desk, 2 for film stretching, and 2 for edge trimming).
Stable Operation: The Taiwan-made guide rails ensure smooth operation of the workbench. The hydraulic system has improved oil ports for easier maintenance and repair.
Durable Construction: The frame undergoes sandblasting treatment to enhance its corrosion resistance. The aluminum frame is processed as a single piece, with no welding seams, increasing strength and durability.
3. Technical Specifications
Total Power: 39.5kW
Average Power Consumption: 12kW/h
Work Cycle Time: 2 minutes
Operator Count: 3-4 people (half of the 7 people required for similar equipment)
Worktable Guide Rails: Taiwan brand
Frame Treatment: Sandblasting treatment for enhanced corrosion resistance
Hydraulic System: Improved oil ports for easier maintenance
Frame Construction: Aluminum alloy one-piece design, no welding seams
4. Performance Advantages
Efficient and Energy-saving: The equipment has lower power consumption, is energy-efficient, and reduces operational costs.
Fast Processing: Significantly improves production efficiency and reduces the processing cycle time.
High-Quality Processing: The processed products have smooth, stable surfaces that meet international standards.
Easy to Operate: Fully automated system reduces manual intervention and increases operational efficiency.
Durable and Reliable: Made with high-quality materials and components to ensure long service life and stable operation.
5. Application Fields
This equipment is widely used in various membrane pressing industries, especially in areas requiring high-precision, high-efficiency production for workpiece laminating, protective films, packaging films, and similar applications.
