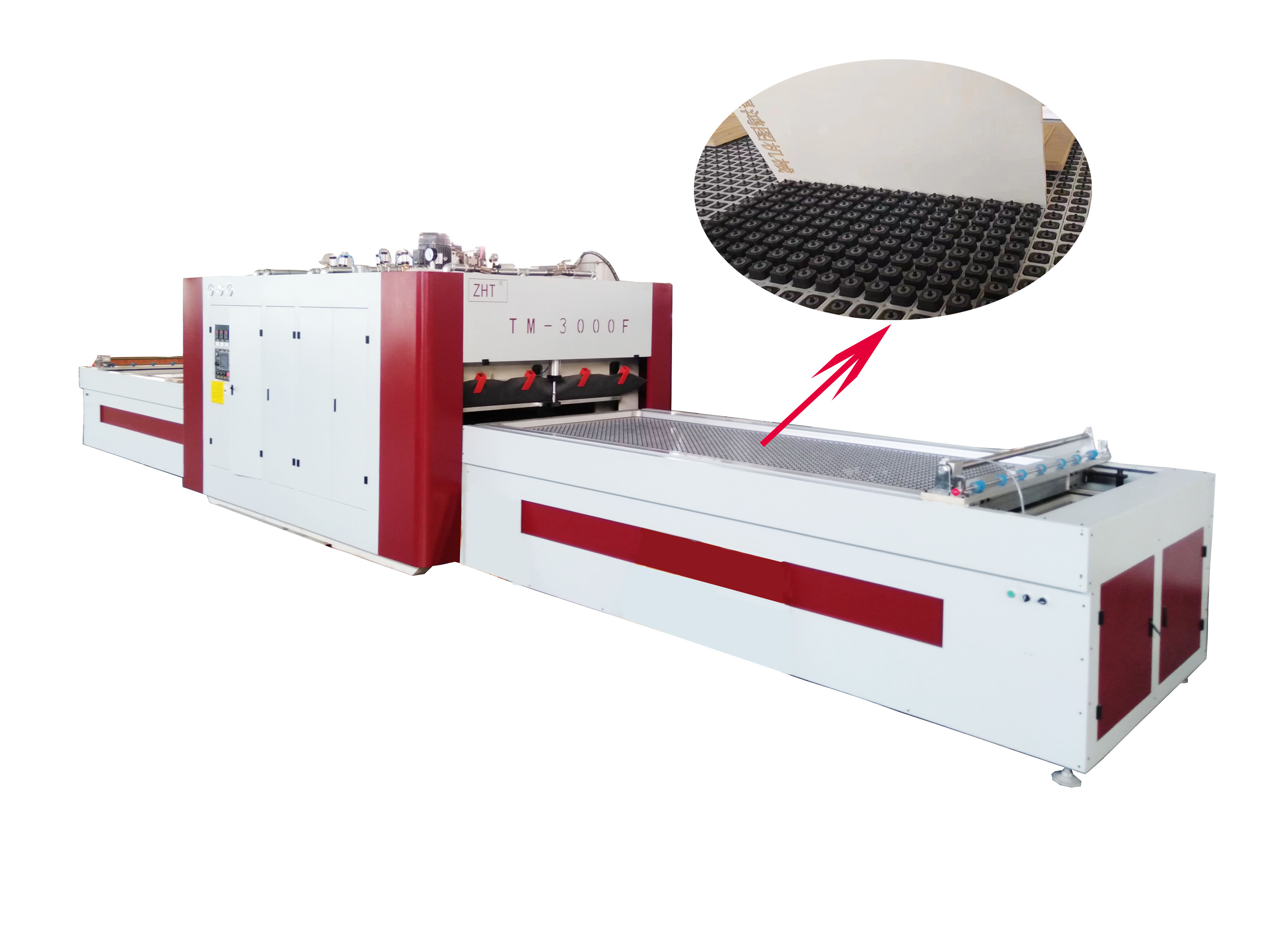

Advantages of ZHT TM3000F PIN System

1. PIN system structure :

We are a high-tech enterprise with the only exclusive patent in the vacuum membrane press machine industry in China. Mechanical structure, the cost of repair is low. Our machine no need scan first , you just place products on the worktable directly , high working efficiency , working faster , easy to operate.

2. Reduce Labor Cost:

Only need 2 workers

3. Vacuum Pump:

High quality vacuum pump SV200 with stable performance.

4. Oil Cylinder:

8 pieces solid oil cylinder (diameter is 180mm), low probability of oil spill.

5. Working Efficiency:

Working cycle is 2 minutes. Compared with similar products, the speed is increased by more than 50 seconds.

6. Frame Structure:

The frame is cut from a 25mm thick integral steel plate, which has high strength, and can reach high strength after processing and heat treatment. Corrosion resistance, with self-rust ability, the formed oxide layer can Prevent metal oxidation and corrosion; good acid and alkali resistance; good plasticity; easy processing, stable performance, high cost, safe and not easy to deform, prolong the service life of the machine, and the overall performance is stable. The upper and lower trays are cut and processed by 10 cm manganese plate as a whole, which can ensure the sealing and stability of the equipment.

7. PIN system worktables:

The aluminum plate of the worktable surface of the PIN system is made of pure German imported 10mm ultra-high-strength aluminum plate, which has high strength and is not easy to deform. The performance of the pin system is stable and reliable, and the service life is long.

8. Heating panel:

The heating panel is made of special aluminum plate, which has uniform heating, high thermal conductivity, rapid heating and low energy consumption.

9. Power consumption:

The average power consumption is 12KW, which can reduce costs, save energy and prolong the service life of the machine in the long run.

10. Low Failure Rate:

The PIN system is a mechanical structure with a stable structure, the workpieces will not be misplaced during the process of table entry, the failure rate is low, easy to maintain, and the maintenance cost is low.

11.Operating Mode

Diversified operation modes, different operation modes can be selected according to the products. Optionally use silicone plate or air pressure system. The air pressure system is invented by our company. It uses hot air to make the threedimensional boundary of the product shape clear, the effect is good, the fit is firm, and there is no gap. Advantages of air pressure system: It has a good lamination effect for special shapes, especially for handle-free and complex shapes cabinet doors.

12. Heating System

Nano electric heating system, fast preheating speed only needs 20-30 minutes, uniform heating, no color difference, no wrinkles.
