MBF-350PUR-Ⅲ
ZHT

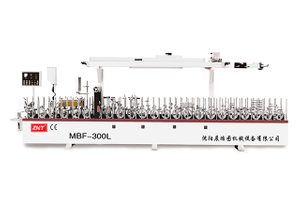

Hot Melt Profile Laminate Making Machine
Technical parameters
Dimensions | 6000mm*680mm*1800mm |
Bed dimension | 10mm-350mm |
Maximum machining height | 110mm |
Glue amount | 1. The amount of glue per m2PVC is about 35-45 grams 2. The amount of glue per m2 veneer is about 60 grams |
Drive wheel width | 15mm |
Feeding speed | 10-45meter/minute |
Actual power consumption | 1.5Kw |
Total power | 6Kw |
Total weight | About 1.8T |
Features:
1. The gluing system meets the daily continuous operation and coating needs of customers' products, and there is no leakage of glue in continuous use.
2. The capacity is 5 gallons of hot melt glue, the inner diameter of the glue barrel is 280mm, and the melting speed is 20kg/h; the temperature control range is (40~230)℃; the heat preservation function of the melter can be set automatically or manually, and the melt system must have an alarm Setting, overpressure protection function, with no glue alarm function. The linkage between the glue machine and the coating equipment can automatically adjust the pump speed of the glue machine with the change of the feeding speed; the glue roller adopts a closed system to avoid external dust pollution.
3. The hot-melt glue pipe have good heat preservation performance, improve thermal efficiency and reduce heat loss; use quick electrical plug connection, which is convenient for installation and maintenance;
4. The maximum squeegee width is 350mm, and the squeegee width can be quickly adjusted by the screws on both sides, the amount of squeegee can be adjusted, and the glue application on the entire fabric width is guaranteed to be uniform. The glue squeegee has a hot melt glue filtering function, and the filtering device can be quickly disassembled to replace the filter.
Hot Melt Profile Laminate Making Machine
Technical parameters
Dimensions | 6000mm*680mm*1800mm |
Bed dimension | 10mm-350mm |
Maximum machining height | 110mm |
Glue amount | 1. The amount of glue per m2PVC is about 35-45 grams 2. The amount of glue per m2 veneer is about 60 grams |
Drive wheel width | 15mm |
Feeding speed | 10-45meter/minute |
Actual power consumption | 1.5Kw |
Total power | 6Kw |
Total weight | About 1.8T |
Features:
1. The gluing system meets the daily continuous operation and coating needs of customers' products, and there is no leakage of glue in continuous use.
2. The capacity is 5 gallons of hot melt glue, the inner diameter of the glue barrel is 280mm, and the melting speed is 20kg/h; the temperature control range is (40~230)℃; the heat preservation function of the melter can be set automatically or manually, and the melt system must have an alarm Setting, overpressure protection function, with no glue alarm function. The linkage between the glue machine and the coating equipment can automatically adjust the pump speed of the glue machine with the change of the feeding speed; the glue roller adopts a closed system to avoid external dust pollution.
3. The hot-melt glue pipe have good heat preservation performance, improve thermal efficiency and reduce heat loss; use quick electrical plug connection, which is convenient for installation and maintenance;
4. The maximum squeegee width is 350mm, and the squeegee width can be quickly adjusted by the screws on both sides, the amount of squeegee can be adjusted, and the glue application on the entire fabric width is guaranteed to be uniform. The glue squeegee has a hot melt glue filtering function, and the filtering device can be quickly disassembled to replace the filter.
