MBF-300C
ZHT

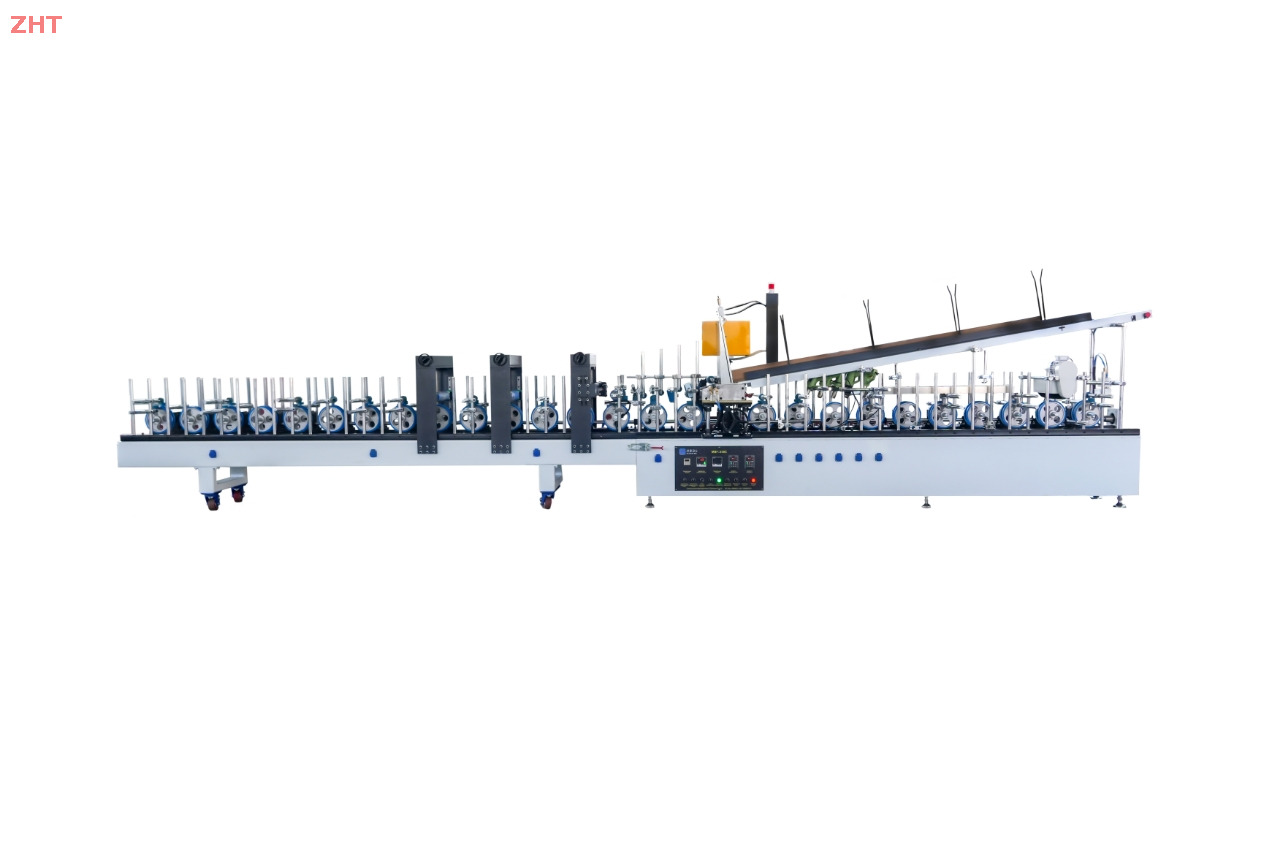

The MBF series veneer machine is a custom-shaped veneer application machine designed and manufactured by our company based on the absorption of advanced foreign technologies and experience. This machine can veneer various solid wood veneers on substrates with various straight shapes.
Through years of production practice and experience accumulation, our company's MBF series coating machine manufacturing process has matured. The MBF series products are now available.
To ensure stable operation, the MBF series coating machine is assembled with thickened steel plates, resulting in superior stability compared to other similar machines that use thin-plate welding. Even with standardized assembly processes, this avoids deformation caused by welding, thus guaranteeing product quality and improving production efficiency and yield.
Technical parameters
Outline size | 8050mm 950mm 1800mm |
Feeding speed | 0 - 20 m/minute |
Application method | Roller-applied |
Roller-applied | 300mm |
Total weight | 2300kg |
Total power | 14KW |
MBF - 300 C (Hot Glue) Coating Machine Accessories List
No. | Items | Unit | Quan. |
1 | 25*350 extended connecting rod | Pcs | 100 |
2 | Double-hole universal joint | Pcs | 50 |
3 | Single-hole universal joint | Pcs | 50 |
4 | Toolbox (containing necessary tools) | Set | 1 |
5 | High-powered air gun | Pcs | 14 |
6 | 50*20 silicone flat roller | Pcs | 80 |
7 | 50*20 iron flat wheel | Pcs | 15 |
