TM3000P-Ⅲ
ZHT

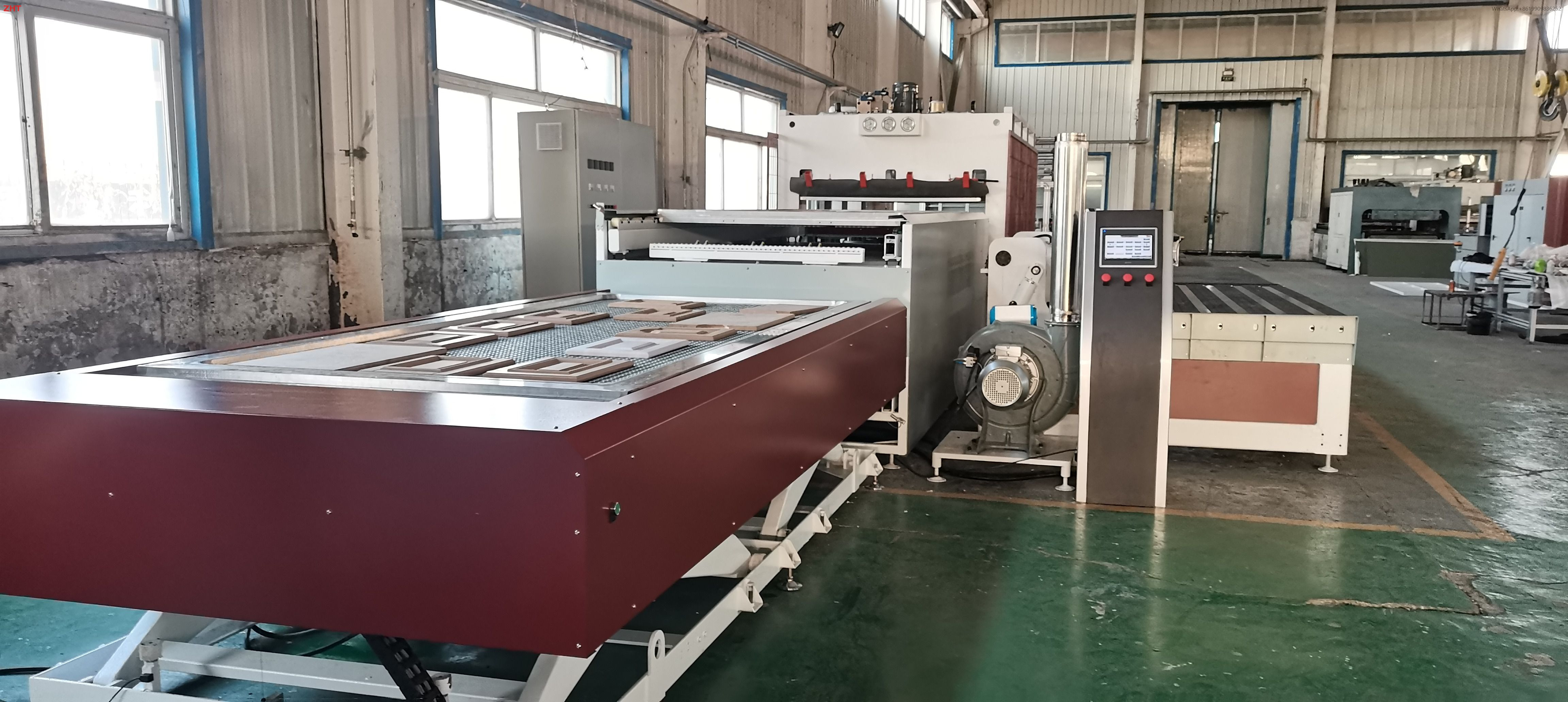

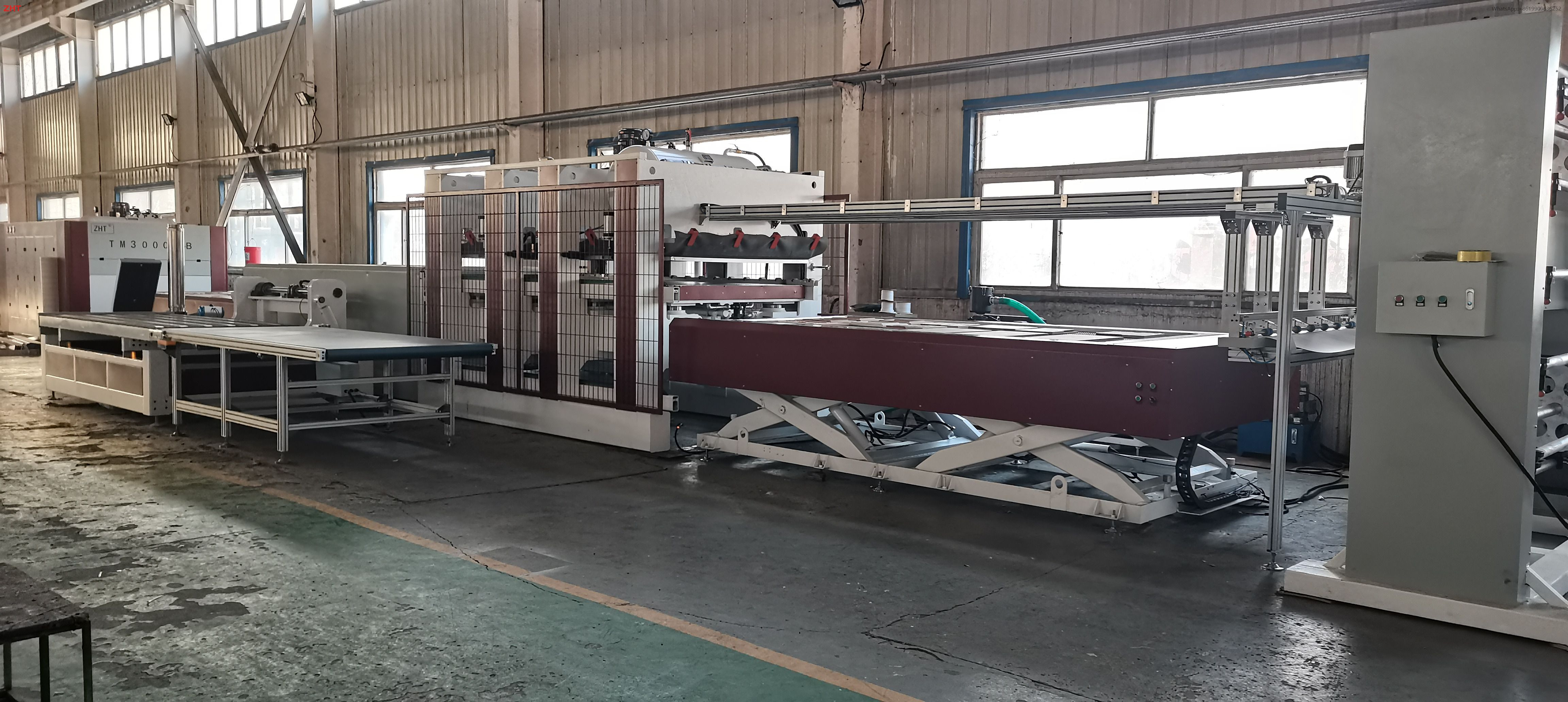

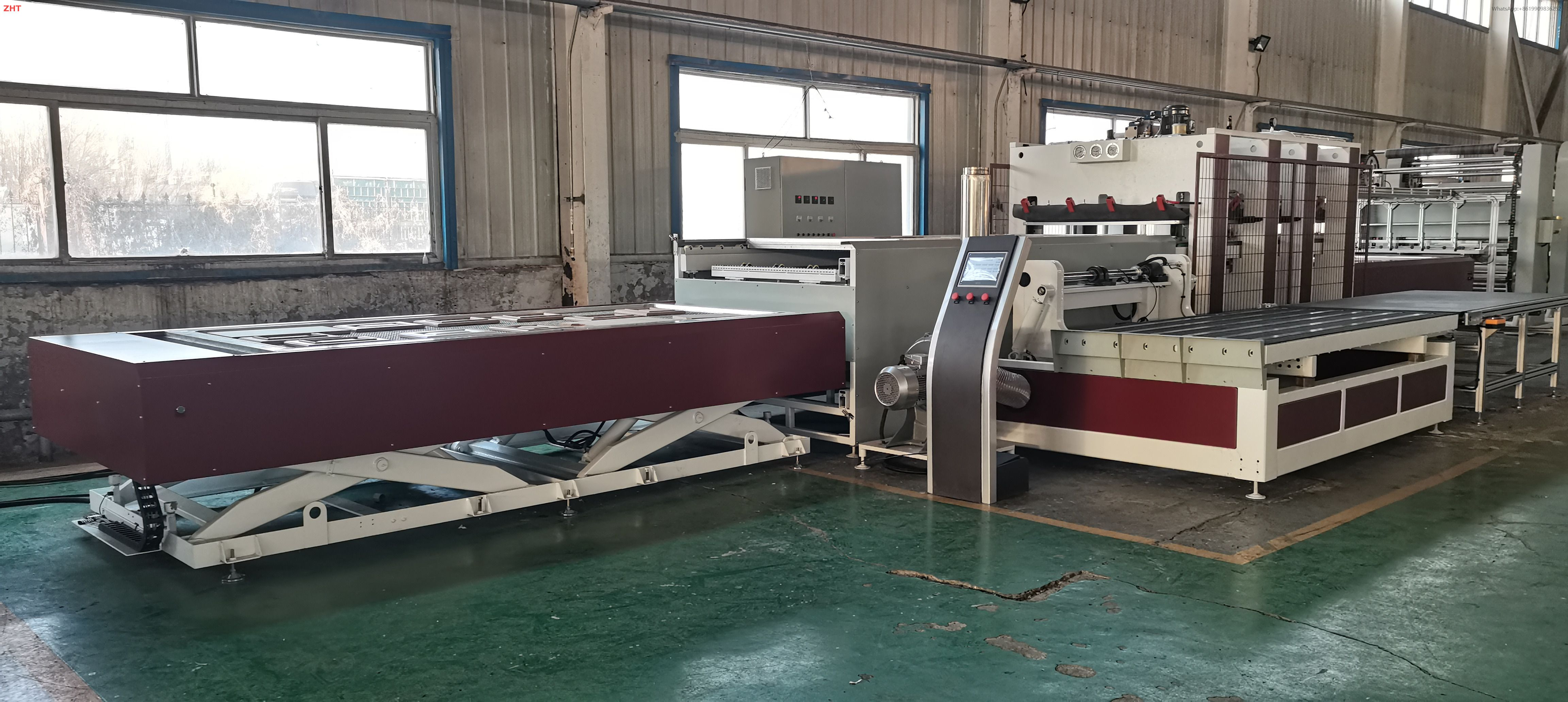

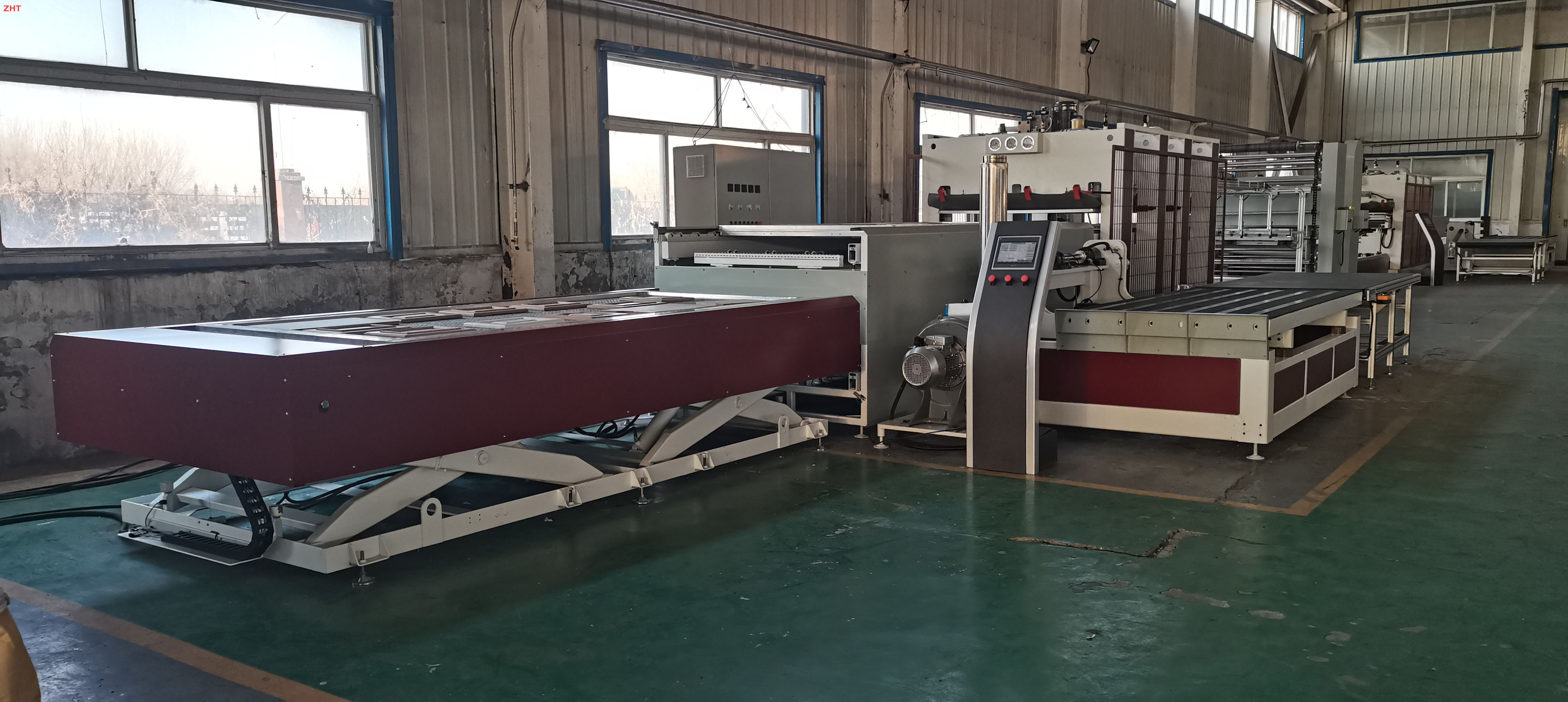

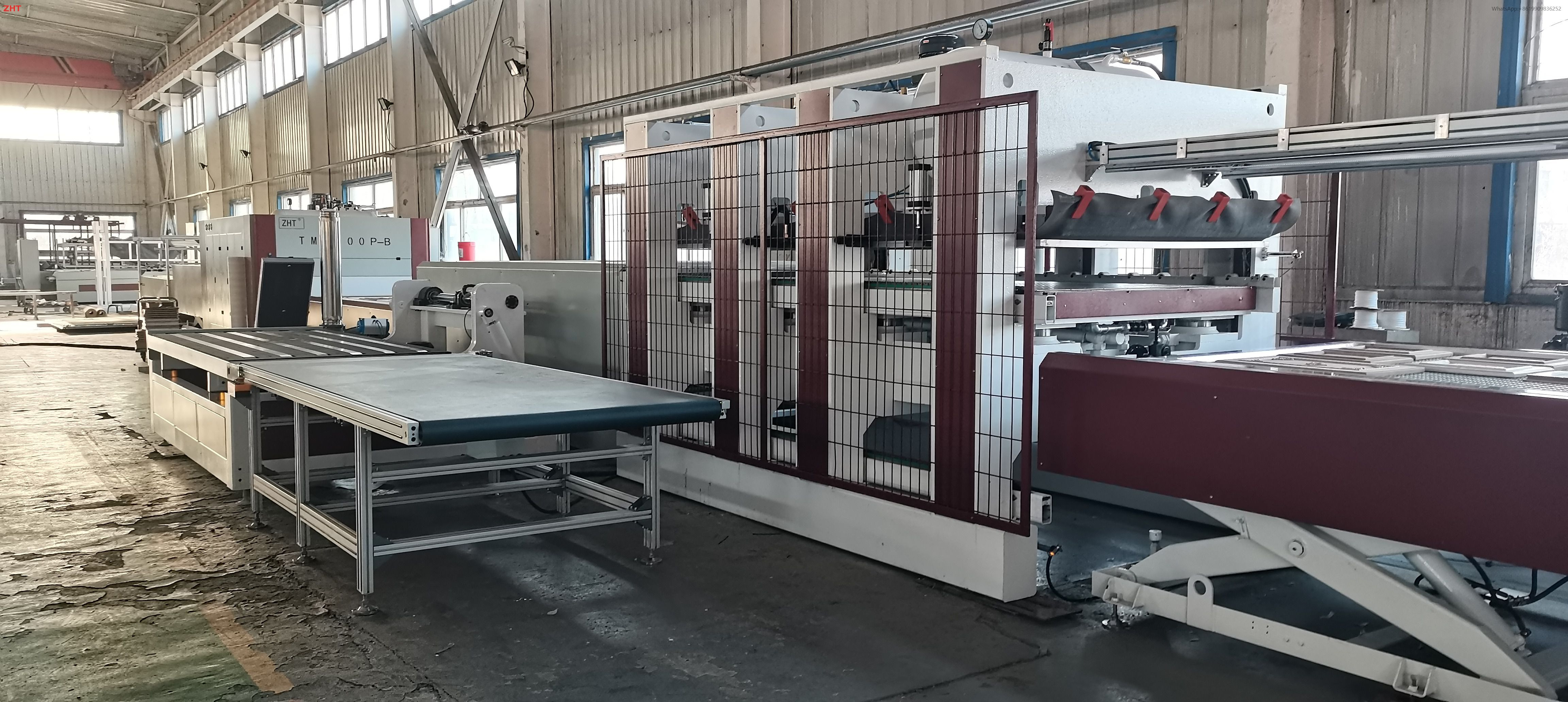

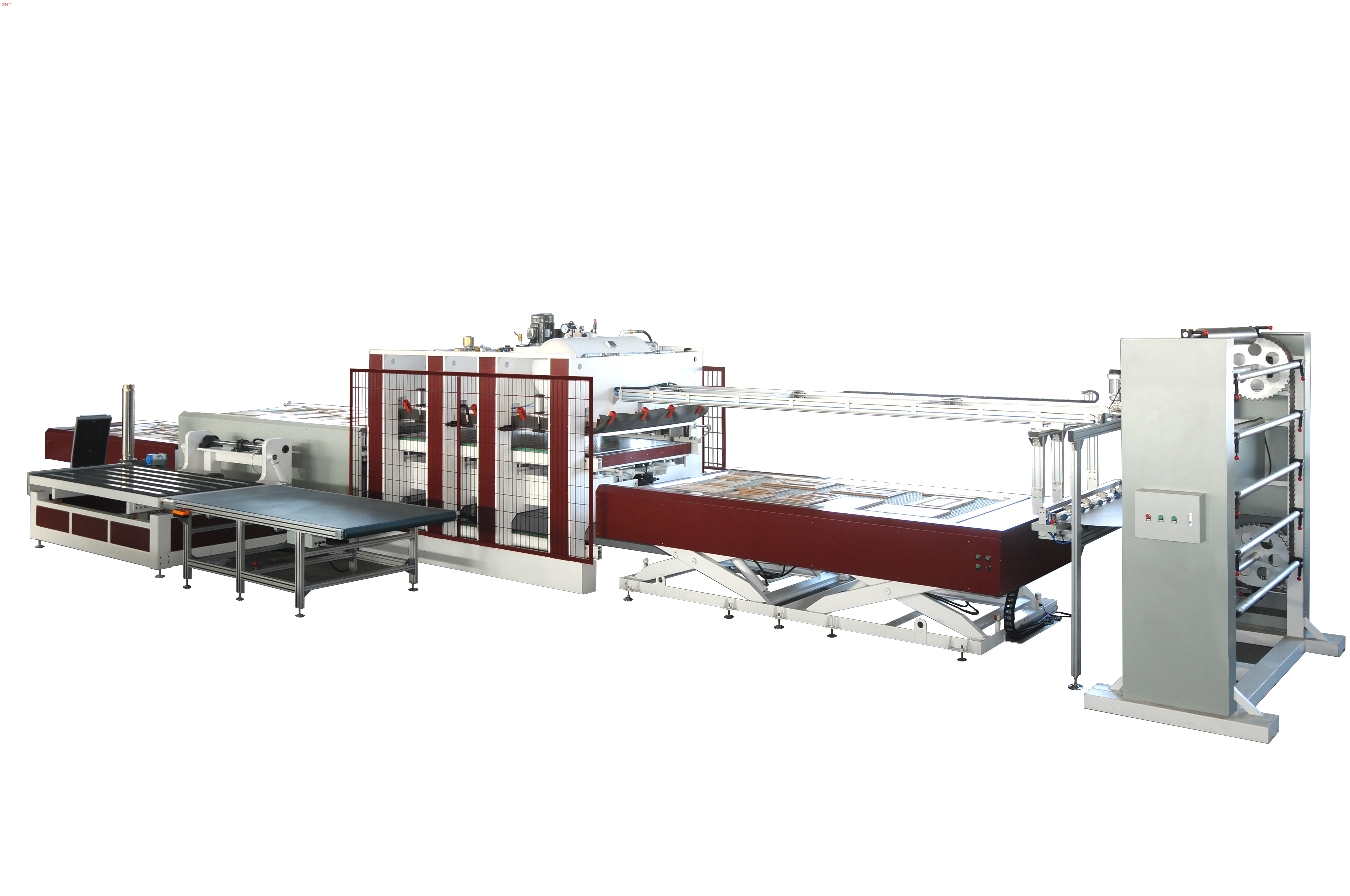

TM3000P-Ⅲ Vacuum Membrane Press Machine With Laser Scanning Pin System
Features
1. The assembly line circulates the station, optimizes the production structure, and separates the area where the workpiece is placed from the finished product, which greatly improves the work efficiency of the assembly line. The equipment requires only three people to operate at full load, creating more value for factory workers.
2. One working cycle is less than 2 mins when high gloss and common workpiece enter the main machine and out of main machine.It`s 2-4 times efficiency than ordinary positive and negative press machine .
3. The grooves of the finished product of the ordinary film are clear and in place, no open edges, blistering, no color difference, and strong adhesion on high-gloss working surfaces.
4. The effect can reach the international leading high level.
5. high configuration: The key part imported from Germany / Japan / Taiwan China, high configuration and stable performance.
6. High working efficiency: The whole machine adopts a fully automatic top block, compare with other manufacturer`s machine ,we reduce the process of making bottom pad , save the raw material costs, reduce the sequence of scan machine , save the working time, increasing working efficiency, reduce labor costs.
7. The machine was equipped with an automatic rack roll for select pvc , automatic pad device, press membrane device , a tray lifting device , a finished product flipping mechanism and a trimming product worktable.
8. The degree of automation is high and process in smooth, compact , one- stop press membrane process production.The height of top block can select 12mm,15mm,18mm, solve the problem of high-gloss sample is not in place
Performance Parameters
Standard placement dimension | 15000mm*5300mm*2820mm |
Worktable size | 3200mm×1300mm |
Maximum working height | 50mm |
Rated pressure | positive pressure≤0.6Mpa, negative pressure≥-0.095 |
Power | 380V 50HZ |
Actual power consumption | 18Kw |
Total weight | 26T |
Power voltage | Three-phase, 380v |

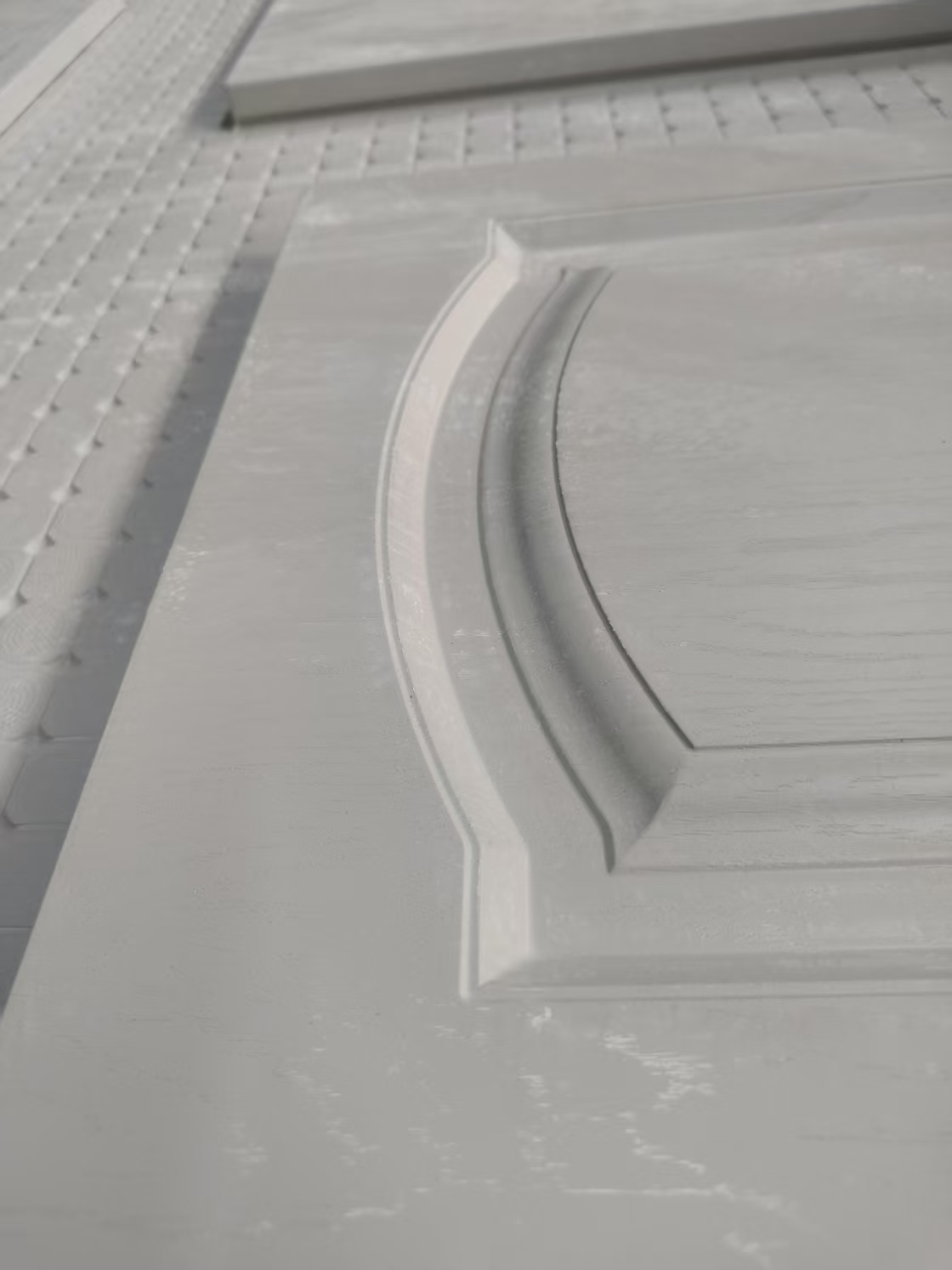

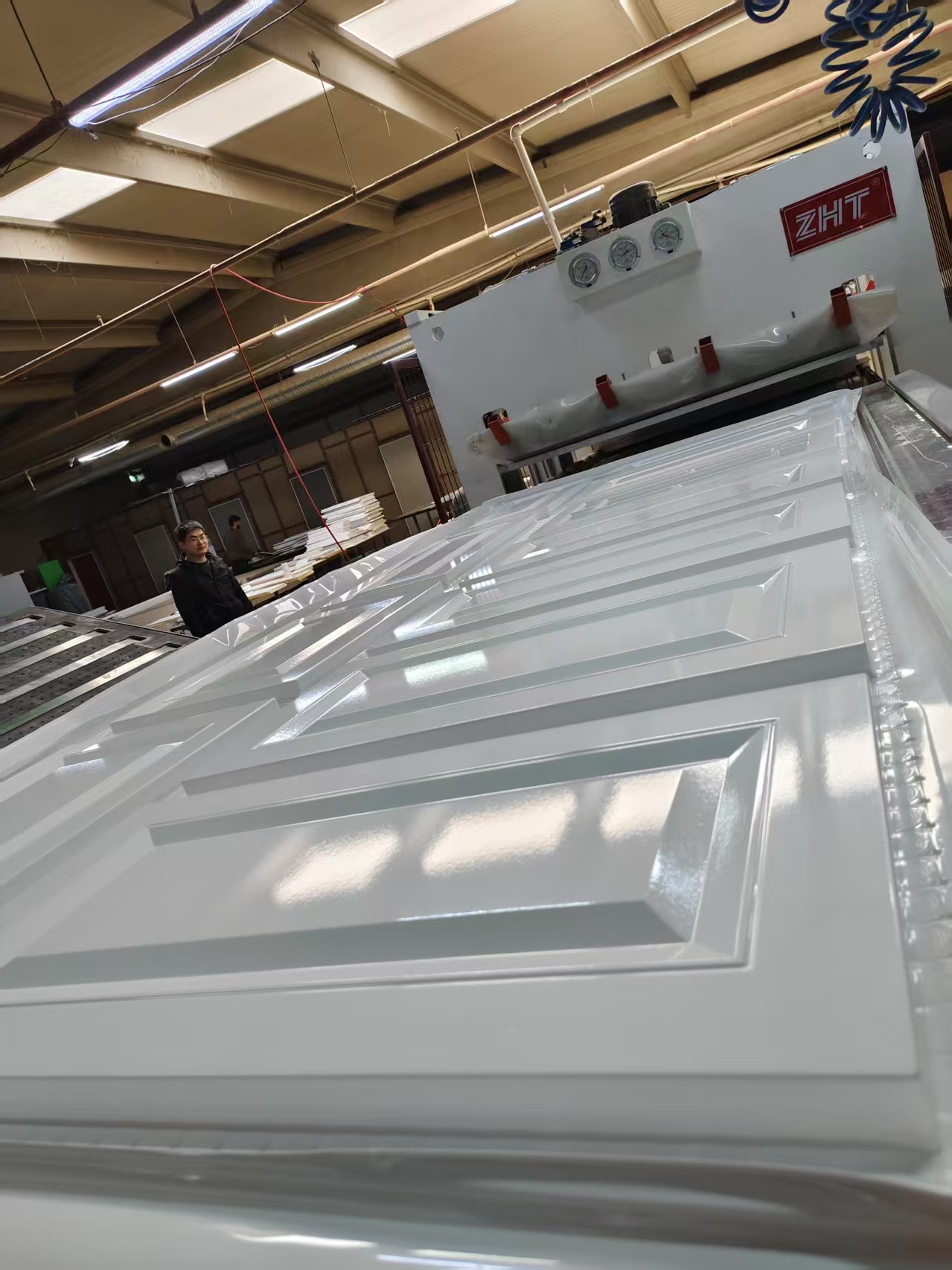

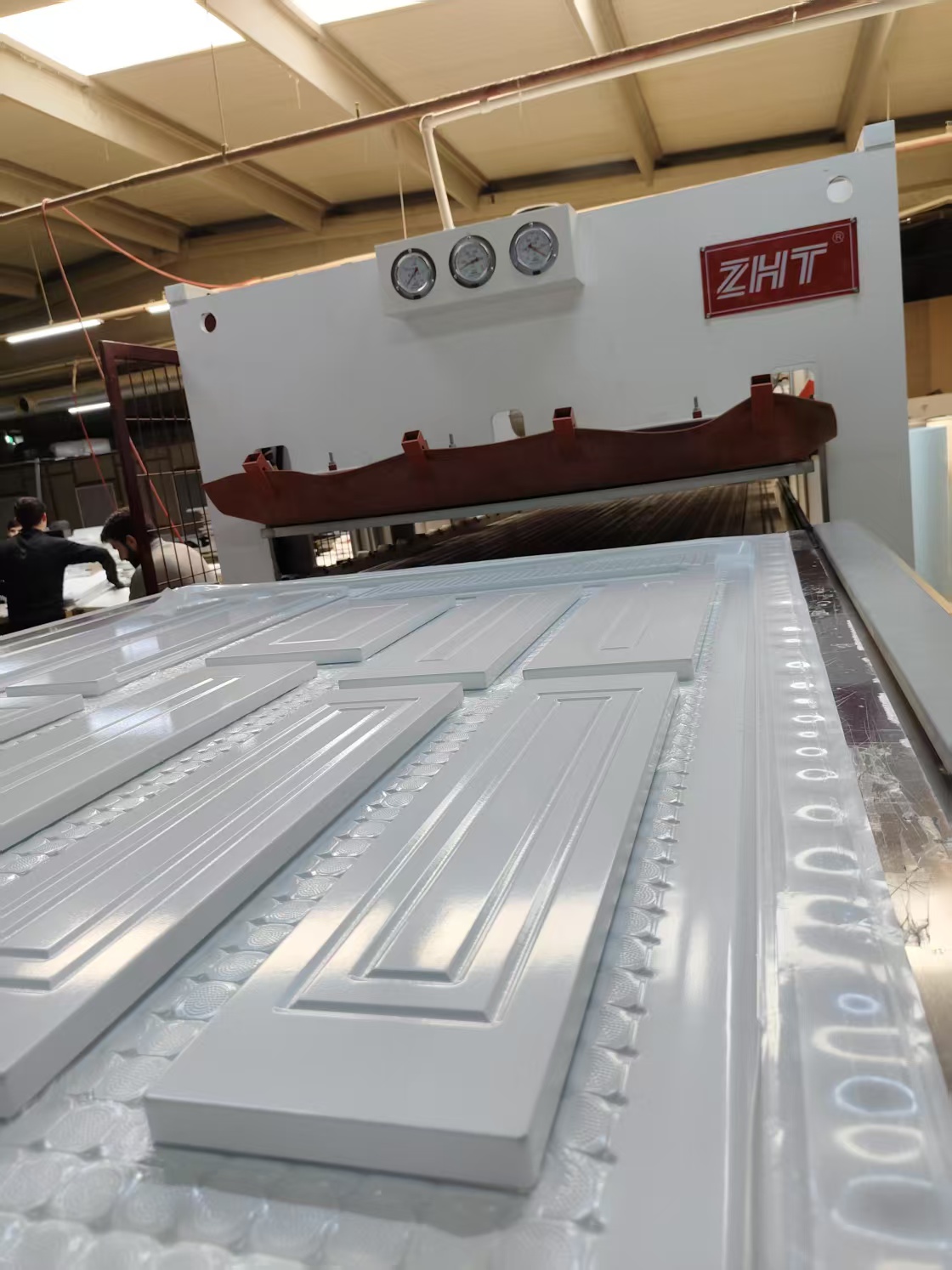

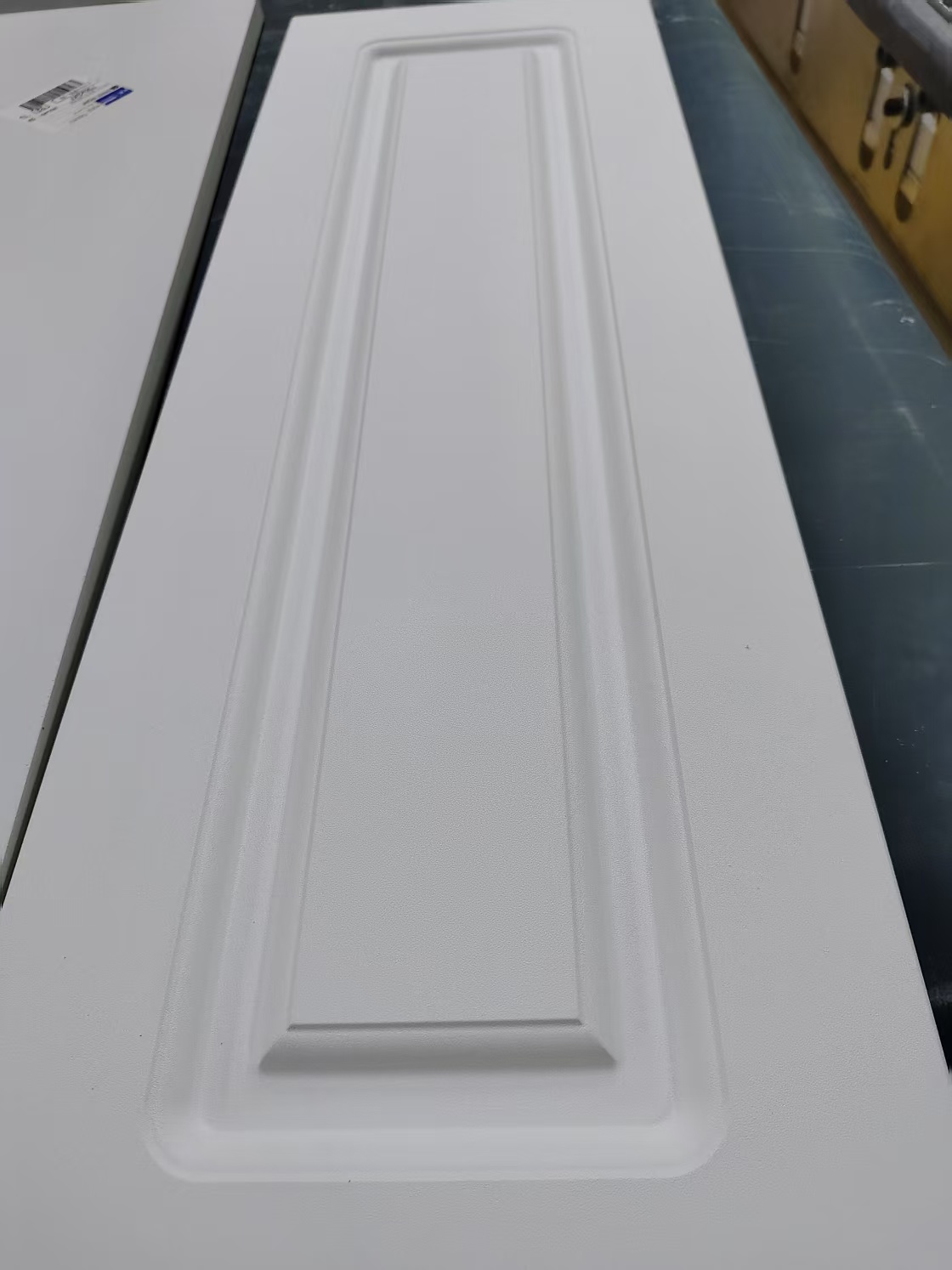

Effect Display
Equipment maintenance
Every 3-6 months, the vacuum pump changes oil once, and the filter is cleaned every 15 working days;
How it works
This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine.
Preheating equipment
Put product on the workbench
Pull the PVC membrane and cover cabinet door
Cutting membrane
Enter the machine
The membrane floating up and heating
Vacuum plus negative pressure plus positive pressure
Release of positive and negative pressure
Unloading hydraulic
Drop workbench
Workbench out
Flipped board sucking sample up
Cut membrane
Work end
This process is done automatically by one click.
Silicone plate life
The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)
