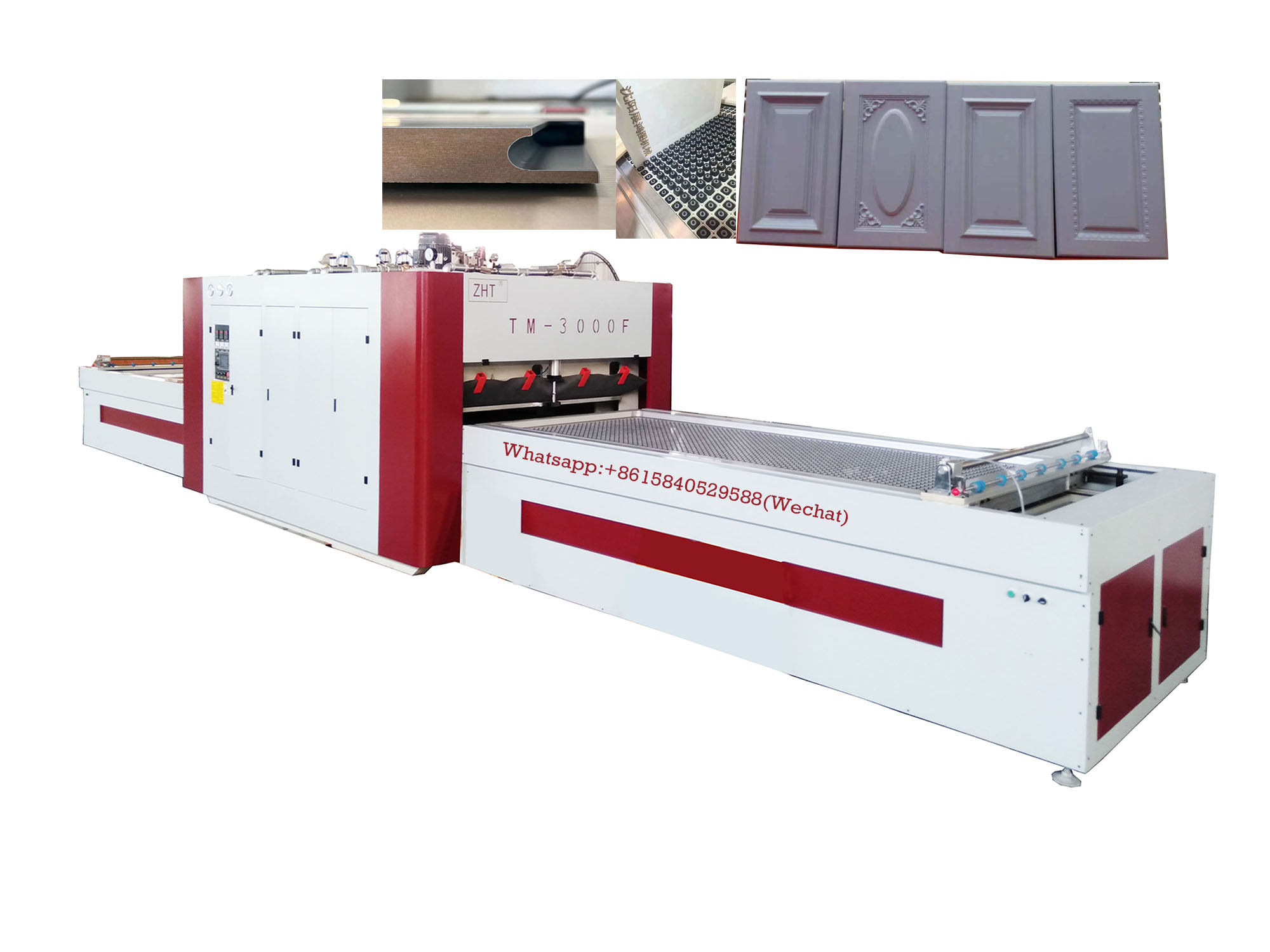

TM3000F Positive and Negative Pressure Membrane Press Machine

TM3000F Positive and Negative Pressure Membrane Press Machine

High Efficiency, High Quality and Energy-Saving Woodworking Laminating Equipment

In the manufacturing process of wooden doors, cabinets and customized furniture, the laminating quality and production efficiency directly determine the product yield and enterprise profit. The TM3000F positive and negative pressure vacuum membrane press machine is a benchmark upgrading equipment in the industry, featuring high-speed molding, perfect fitting, low energy consumption and premium configuration.

1. Ultra-High Working Efficiency, Greatly Improve Production Capacity

The whole processing cycle of conventional workpieces is controlled within 2 minutes, and the working efficiency is 2 to 4 times that of traditional membrane press machines. Under standard working conditions, the daily production capacity can reach 330-380 square meters. It effectively shortens the order delivery cycle and fully meets the mass production demand of customized furniture factories.

2. Superior Laminating Effect, Zero Defect Finished Products

Equipped with professional positive and negative dual pressure system, the machine adopts lower vacuum pumping and upper pressure pressing technology, which can achieve 100% fitting on workpiece edges, grooves and special-shaped surfaces.

The finished products have no bubbles, no edge warping, no color difference and clear groove lines. It is compatible with various laminating materials including PVC film, PET film, wood veneer, heat transfer film and leather. The maximum processing height reaches 50mm, matching most special-shaped furniture workpiece processing requirements.

3. Low Energy Consumption, Save Long-Term Production Cost

This equipment adopts optimized power design and energy-saving heating technology. The total power is 35KW, which is only half of similar equipment on the market. The main heating power is 21KW, and the average power consumption is about 12KW per hour.

It can save nearly 50% of electric energy compared with traditional models, helping manufacturers save tens of thousands of electricity costs every year, with extremely high long-term cost performance.

4. Premium Core Configuration, Stable and Durable

• Heavy-duty Frame: Integral steel plate cutting and welding structure, with a total weight of 17 tons, no deformation during long-term high-intensity operation.

• Stable Hydraulic System: Equipped with 8 solid oil cylinders of φ180mm and high-quality hydraulic accessories, ensuring uniform pressure and stable operation.

• High-Power Vacuum System: Imported vacuum pump with strong suction and long service life, ensuring thorough vacuum pumping.

• Intelligent Electric Control: Adopts Schneider electrical components and PLC intelligent control system, with large touch screen human-computer interface, simple operation and precise parameter control.

• Uniform Heating System: Nano heating technology, fast heating speed and uniform temperature distribution, effectively avoiding local uneven laminating.

5. Wide Application Scope

It is widely used for laminating processing of customized cabinet doors, wardrobe doors, vacuum-absorbing doors, solid wood composite doors, special-shaped decorative panels, wall background walls, handle-free cabinet panels, wood-plastic materials and speaker casings, covering most furniture and decorative material processing scenarios.

6. Technical Parameters

• Worktable Size: 3000×1270mm

• Total Power: 35KW

• Working Pressure: Positive pressure ≤0.6Mpa, Negative pressure ≥-0.095Mpa

• Overall Dimension: 12200×2480×2150mm

• Machine Weight: 17 Tons

• Working Voltage: 380V, 50Hz, Three-phase

Summary

The TM3000F positive and negative pressure membrane press machine integrates high efficiency, high precision, energy saving and high stability. It is an ideal equipment for new factory investment and old equipment upgrading, helping furniture manufacturing enterprises improve product quality, boost production efficiency, reduce operating costs and enhance market competitiveness
