Automation High Gloss Laminating Machine Manufacturer TM3000

Dimensions 10500mm x2100mm x2000mm
Bed dimension 3000mm x1150(1300)mm x 55mm
Maximum machining height 60mm
Maximum working area 3000 x1150(1300)mm
Total power 45KW
Actual power consumption 10KW
Total weight  4T
vacuum degree ≤-0.095Mpa

Quantity:
  • TM3000
  • ZHT

TM3000 Automation High Gloss Laminating Machine





Description:


This machine is a fully automatic vacuum coating equipment, which can be used for surface finishing of various kinds of high-grade PVC, imitation wood, stone grain, leather, etc.


The machine is highly automatic and easy to operate.


The work table is fully automatic in and out of the warehouse.The processing time, processing temperature and vacuum in the warehouse are automatically controlled by digital display, thus ensuring product quality and improving production efficiency.


In addition to the excellent characteristics of the domestic general laminating machine, the machine also has the function of making high-gloss PVC. The heating system adopts aluminum plate heating and high heat conduction efficiency, so as to improve product yield.


Function


This function is a high performance laminating machine developed by our technical staff based on the characteristics of PVC film, which solves the problem that the common positive and negative pressure high-light modeling cannot be done properly at one time and cannot be repaired.

This machine adopts special process heating and large table processing, which greatly improves production efficiency and saves cost.The transmission series adopts the chain transmission, and the moving table adopts the two-level deceleration to prevent the workpiece from being out of place and resulting in product waste.


The computer system USES imported electric appliances with stable performance and is equipped with two operating procedures of automatic hand, so the braking degree is high.This machine is the largest table surface laminating machine in Asia.




Technical parameter


Dimensions

10500mm x2100mm x2000mm

B ed dimension
3000mm x1150(1300)mm x 55mm
Maximum machining height
60mm
Maximum working area
3000 x1150(1300)mm
Total power
45KW
Actual power consumption
10KW
Total weight
4T
vacuum degree
≤-0.095Mpa

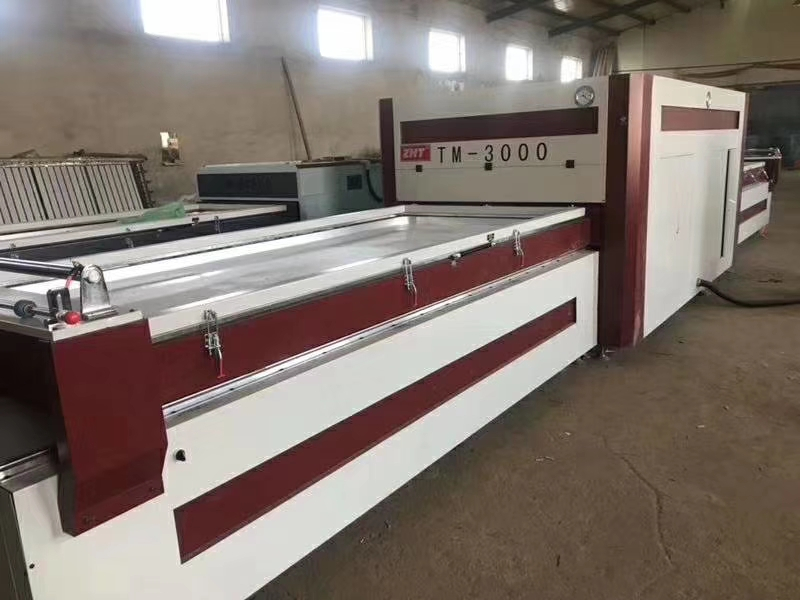

Part of display






mmexport1556508527714





How it works


1. Place the work piece into the workbench: when placing work piece, keeping the proper distance between the work pieces , which is generally about 2-3 times the height of the work piece (that means ,the height not including height of pad). The work piece should be propped up with bottom pad. The thickness of the pad is the same as the thickness of the work piece. The thickest pad is not more than 25mm when making thick work piece and the pad is 7mm smaller than the around edge of side of work piece. The pad must be strong , due to the large suction force make the work piece deform or break, causing waste.


2. Check: Check whether there are small particles on the surface of the work
 piece, if necessary, clean them up.


3. Pull the film: cover the film on the surface of the workpiece.


4. Laminating: When laminating, first select the automatic | manual gear for laminating.


5. Trimming: Pick up and trimming the work piece.


This process is done automatically by one click



Random parts list


Product name

unit

quantity

remark

Solid wrench

pcs

2

17*1912*14

Cross screwdriver

pcs

1


Internal hexagonal wrench46

pcs

2


Socket head cap screw

pcs

5

M6*25

Footing

set

8

Double tables

Footing

set

8

Double tables

Galvanized tube

pcs

1

Single table

Galvanized tube

pcs

2

Double tables

PVC holder leg

pcs

2

Single table

PVC holder leg

pcs

4

Double tables

PVC holder connection

pcs

3

Single table

PVC holder connection

pcs

6

Double tables

Slot type screwdriver

pcs

1


Limit switch

pcs

2
