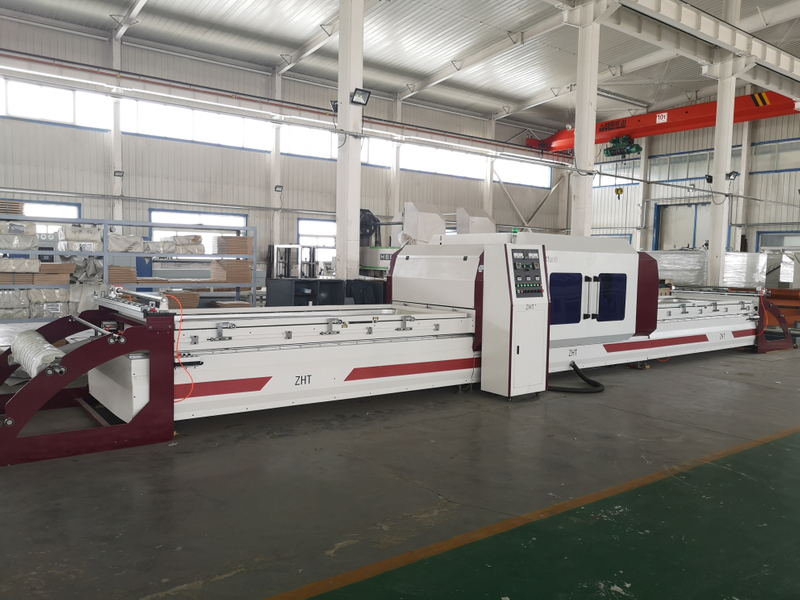

TM3000B Wood Door Automation High Gloss Laminating Machine Vacuum Membrane Press Machine

This machine is equipped with automatic locking device, Press film covering device, automatic table running device and so on. The process is smooth and tightly one-stop production.

Quantity:
  • TM3000B
  • ZHT

TM3000B Automation high gloss laminating machine



Function



1. It fully demonstrates that the equipment can be used rationally and pleasantly.fully take equipment structural, materials and other conditions into consideration, so the operator's working gesture is more in line with the the principle of ergonomics, to provide workers with a comfortable and safe working environment,to reach an optimize efficiency.



2. This machine is equipped with automatic locking device, Press film covering device, automatic table running device and so on. The process is smooth and tightly one-stop production.



3.  The machine is highly automation and is easy to operate. The warehouse is automatically operated and transmitted. The processing time, temperature and vacuum degree of the work piece are automatically controlled by digital display, so that the function of high-gloss PVC is achieved. The heating system is heated by aluminum plate, so it can maintain a uniform strength heat, thereby improved the percentage of qualified products.



4. This high-performance membrane press machine developed by our technicians from studying the characteristics of PVC film. It solves the problem that ordinary positive and negative press machine can not properly dealing high-glossy work piece.



5. This machine adopts unique heating process, large processing work-surface , which can both greatly improves production efficiency and saves cost;



6. The transmission system leases chain drive, adopts two-stage deceleration to prevent misalignment, avoid product wasting; computer system adopts imported electrical appliances with stable work performance , equipped with manual operation procedures with high degree of automation. This machine equipped with the largest worktable area in Asia.



Silicone plate life



The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)



微信图片_20190813111702



Technical parameter



Outline dimension

12500mm x2100mm x1700mm

Bed dimension

3000mm x1300mm

Maximum machining height

60mm

Total power

45KW

Total weight

4T

vacuum degree

≤-0.095Mpa



How it works



This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine

  •  Preheating equipment

  •  Put product on the workbench

  •  Pull the PVC membrane and cover cabinet door

  •  Cutting membrane

  •  Enter the machine

  •  The membrane floating up and heating

  •  Vacuum plus negative pressure

  •  Release of negative pressure

  •  Unloading hydraulic

  •  Drop workbench

  •  Workbench out

  •  Cut membrane

  •  Work end


This process is done automatically by one click



Warranty

1. In order to ensure that the demander can use the equipment normally, the warranty period is one year, except for consumables (pressure buckle, gas strut). The supplier will provide free warranty service during the warranty period, non warranty period provide free consultation and troubleshooting for repair, maintenance. The warranty period is calculated from the day when the equipment is shipped.

2. The warranty does not include: damage caused by man-made and natural disasters. (such as fire, flood, earthquake)

3. If the equipment occurs error, The supplier shall provide free qualified parts and maintenance during the warranty period; outside the warranty period, the supplier shall provide the demand at a preferential price for a long time. The cost incurred by the supplier for maintenance shall be settled by both parties through negotiation

4. The supplier shall provide technical support to the demander to install and debug the equipment, and train the demander's personnel in practical operation, processing and maintenance
