TM2480A
ZHT

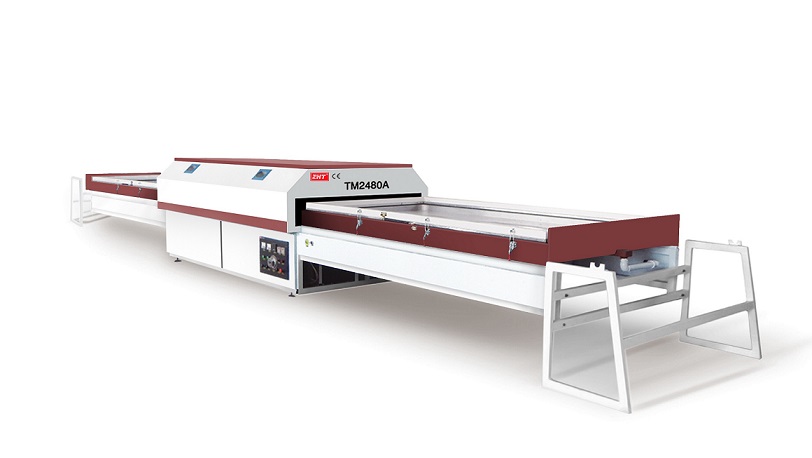

TM2480A - High-Precision Negative Pressure Laminating System
Function:

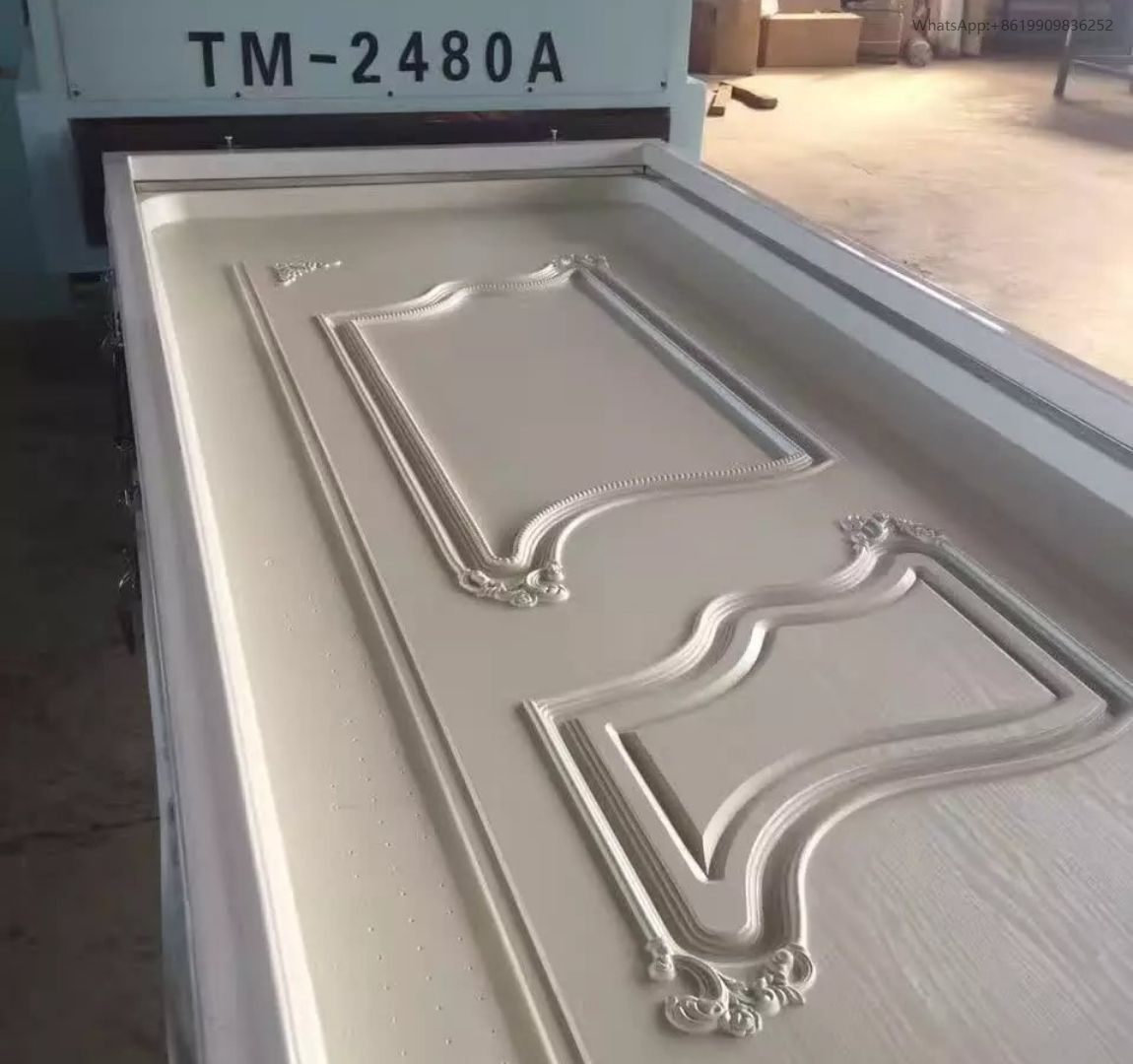

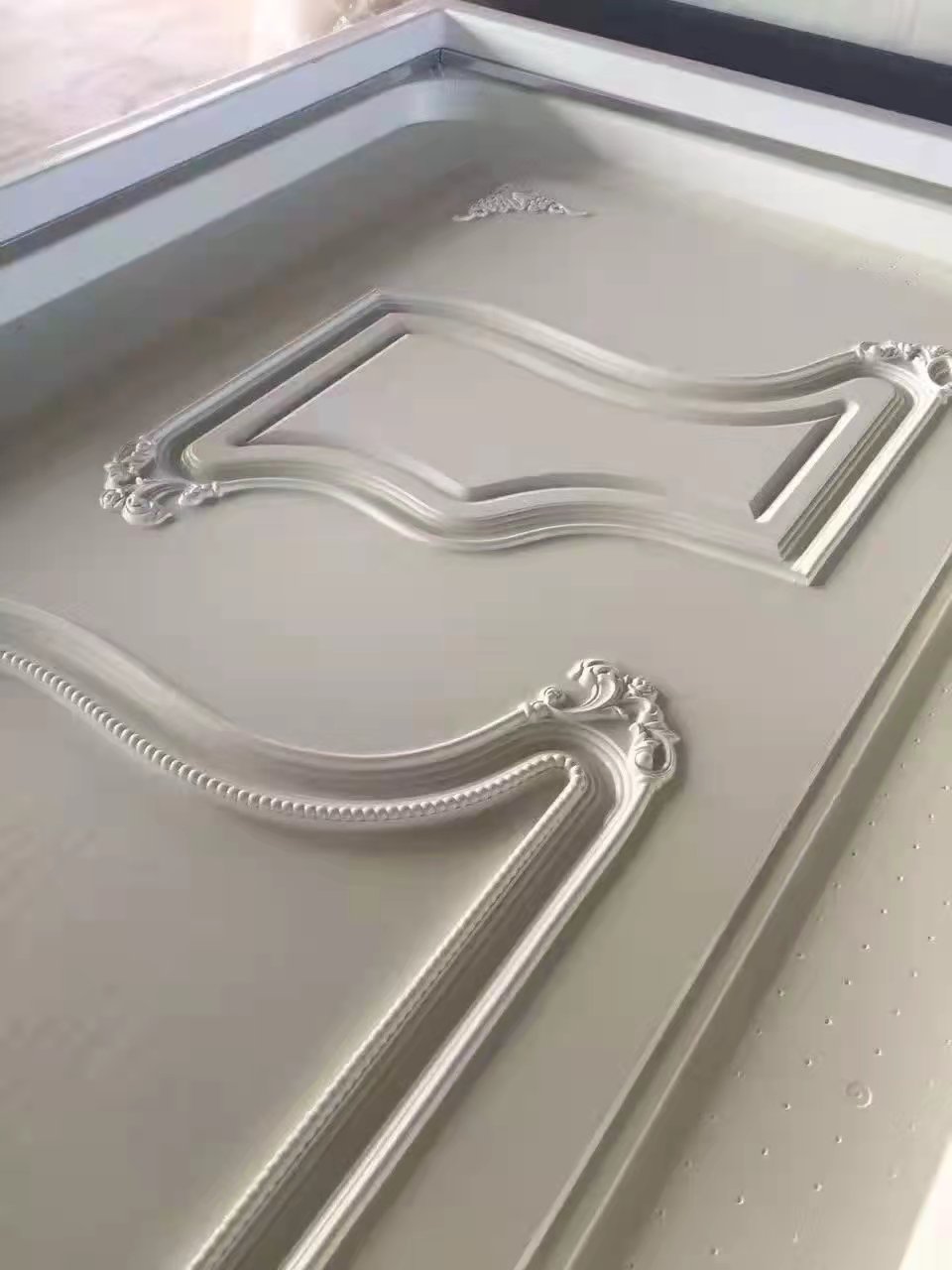

- Apply PVC film to various surfaces.
- Can be used for heat transfer film and veneer after the installation of a silicone plate.
Features:
- Manual operation with a non-moving heating chamber.
- Electric contact vacuum gauge for vacuum control.
- Microcomputer temperature controller for precise temperature control.
- Equipped with domestic top 2X series vacuum pumps.
- Can be configured with a highlight function.
- Option to select an imported pump.

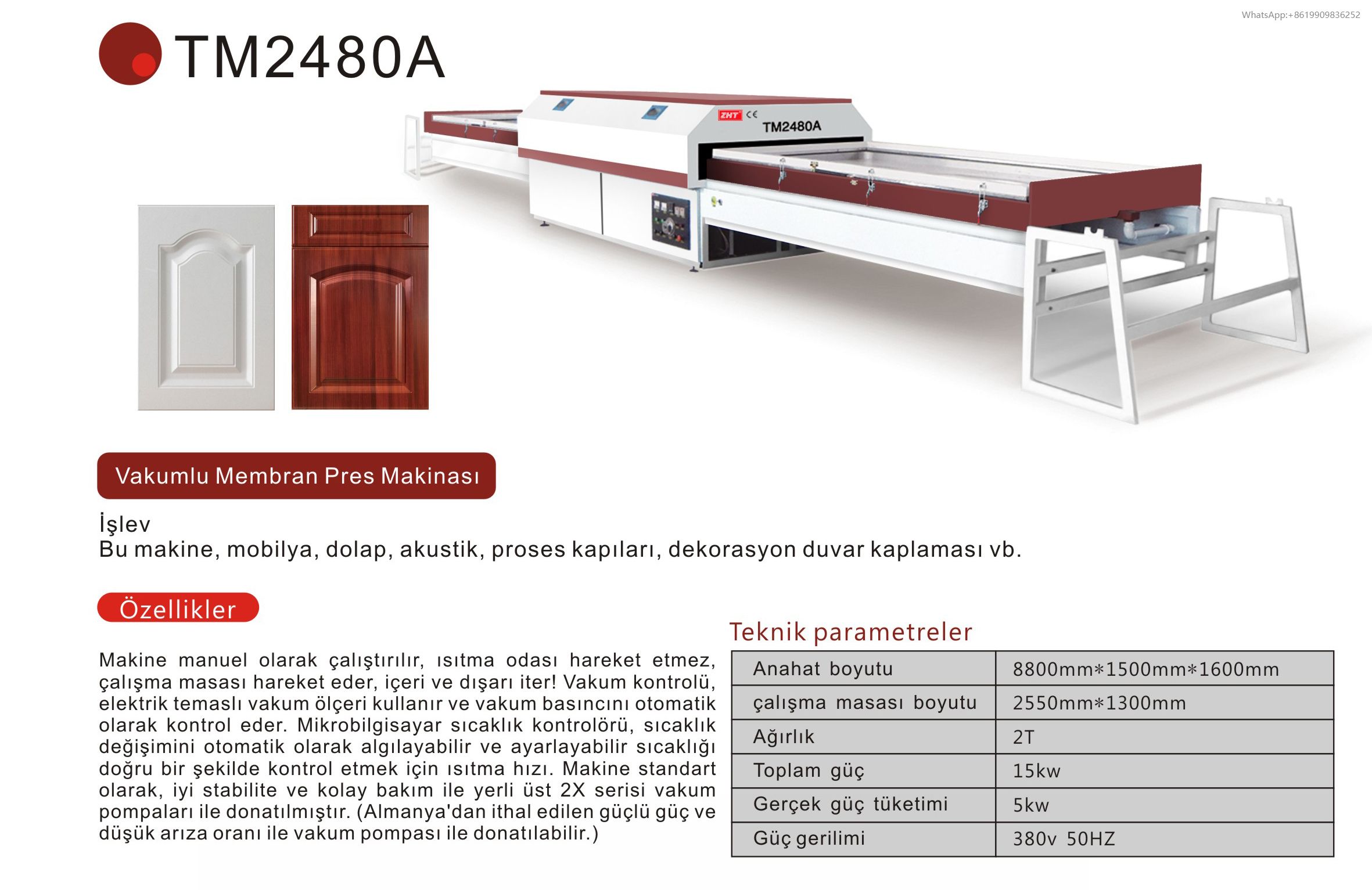

Technical Parameters:
- Dimensions: 8800mm x 1500mm x 1600mm
- Bed Dimension: 2550mm x 1100(1300)mm
- Rated Working Pressure: Negative pressure ≥ -0.095Mpa
- Total Power: 15KW
- Actual Power Consumption: Approximately 5KW
- Total Weight: 2T
- Frame: Cut the whole steel plate
- Number of Cylinders: 8
- Cylinder Diameter: 180mm
- Cylinder Structure: Solid
- Cylinder Stroke: 200mm
- Hydraulic System: Taiwan
- Heating System: Electric heating (nanotechnology)
- Vacuum Pump (Import): SV100
- Relay (Import): Schneider
Upgrade Improvements:
- Improved walking guide for smoother workbench movement.
- Sandblasted racks for enhanced corrosion resistance.
- Improved lifting balance system for stability.
- Enhanced hydraulic system oil port for easier maintenance.
- One-piece processed aluminum frame for increased strength.
