TM2580F
ZHT
Hot Woodworking Automatic Vacuum Membrane Press Machine
Features
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; The main heating starting power is 15KW, and the average power consumption is 8KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.
Technical parameter
Dimensions | 11200mm×2480mm×2150mm |
Bed dimension | 2560mm×1270mm |
Maximum machining height | 50mm |
Rated working pressure | positive pressure≤0.6Mpa negative pressure≥-0.095Mpa |
Total power | 28Kw |
Actual power consumption | about 10kw |
Total weight | 14T |
Power | 380V 50HZ |
Right work table
main body
left worktable
pvc rack
pvc cutter
Hardware Configuration
Rack | The whole steel plate is cutting |
Diameter of oil tank | 180mm |
Cylinder structure | Solid |
Cylinder stroke | 200mm |
Hydraulic system | TaiWan |
Heating method | Electrical heating (nano technology) |
Vacuum pump(import) | SV100 |
Relay(import) | Schneider |
Upgrade improvements
1. The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.
2. The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.
3. The lifting balance system is easy to adjust, and the rise and fall are more stable.
4. Hydraulic system oil port improvement and maintenance is more convenient.
5. The aluminum frame is processed by one body, and no weld seam increases the strength.

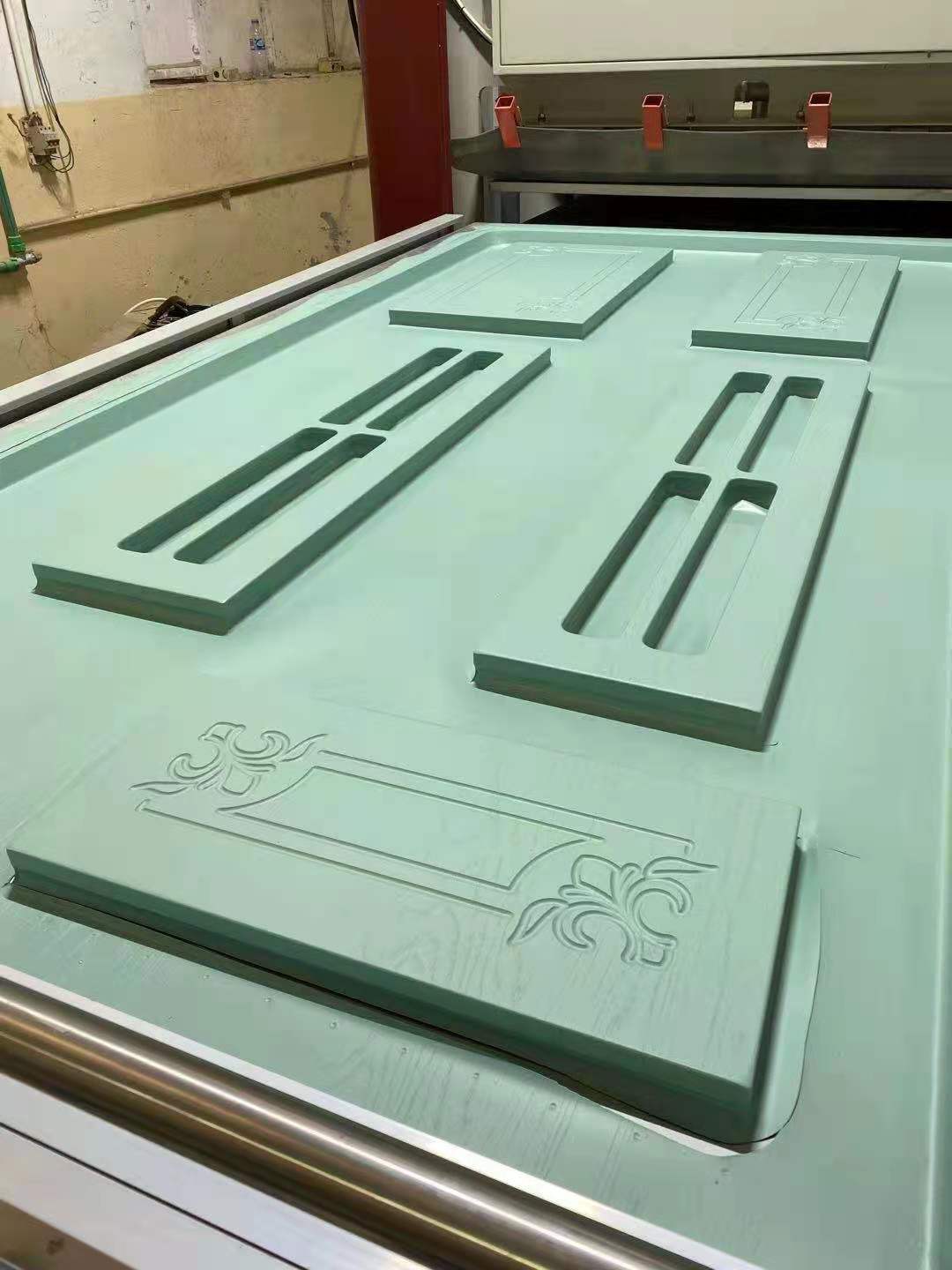

workpiece
How it works
This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine.
1. Preheating equipment
2. Put product on the workbench
3. Pull the PVC membrane and cover cabinet door
4. Cutting membrane
5. Enter the machine
6. The membrane floating up and heating
7. Vacuum plus negative pressure plus positive pressure
8. Release of positive and negative pressure
9. Unloading hydraulic
10. Drop workbench
11. Workbench out
12. Work end
Quality and Service are most important things for us
If you have any problem,please let us know
