TM4500 Film Laminating Machine for PVC Paint-Free Door

Function
The machine is a vacuum film laminating one specially for veneer on high-end PVC, wood-like materials, marble and also leather. Film laminating for two veneer sheets can be operated on extra-large working bench one time, and it can cut off PVC based on pieces to be processed so as to save more membrane.

Dimensions:
Bed dimension:
Total power:
Actual power consumption:
Total weight :
Quantity:
  • TM4500
  • ZHT

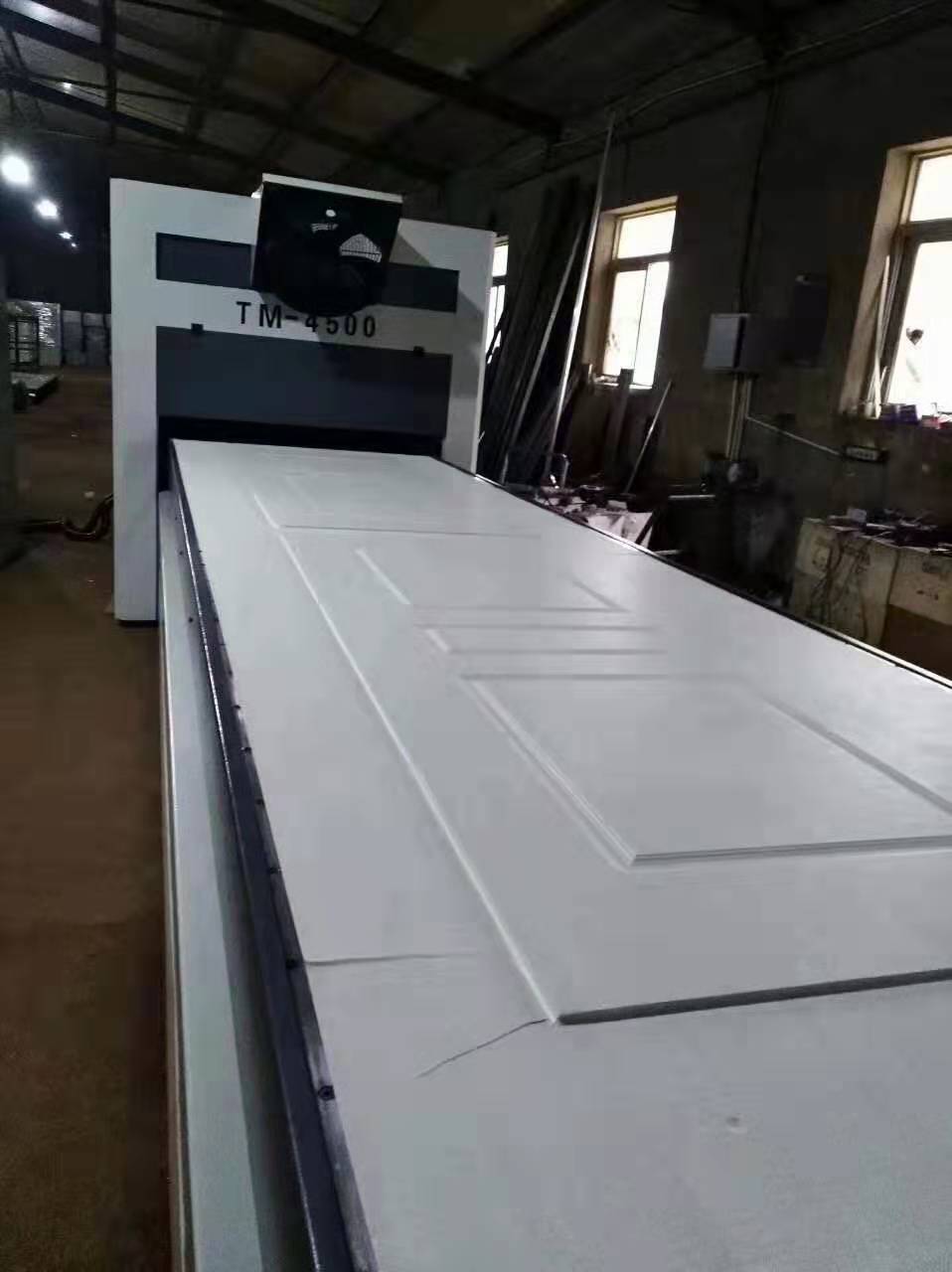

TM4500 Film Laminating Machine for PVC Paint-free Door




 Feature:

1. High automation:

The machine is highly automated, easily operated with automatic feeding. Items of processing time, temperature during the process of manufacture, as well as vacuum degree shall be in the control of digital display instrument.

2. Good heat conductivity:

Aluminum plate shall be used for heating system, which is of high heat conduction for higher rate of finished products.

3. Innovative design:

The machine TM4500 comes out by our technicians out of properties of PVC film to solve the issue of failure to form and to repair one time by ordinary negative press machine.

4. High configuration:

The operation of drive system shall be done by chain drive, double reduction gear applied for feeding to avoid piece malposition, which shall lead to product waste; Electrical devices that imported with stable property shall be used for electrical system, equipped with two operating programs of high automation.

5. High working efficiency:

Heating by special craftsmanship on large bench, which highly improve product efficiency and save cost.

6.High Configuration:

Two antomatic feeding machines for PVC material, films no less than 10 rolls for each.


 微信图片_20190320153314

Technical parameter



Dimensions

15500mm*2100mm*2000mm

Bed dimension

2300mm*1100mm

Total power

42.4KW

Actual power consumption

13KW

Total weight

7T

Vacuum

≤-0.095Mpa



TM4500


Properties


1. Select the brand Busch for vacuum pump, Schneider for electrical devices. High efficiency by film laminating on two plates one time on 4.5m (inner diameter) bench with less film.

2. Maintenance: replace oil for vacuum pump every 3-6 months, clean filter every 15 days.




Parts that are easy to damage: gasket, limit switch (not covered by warranty)




Name

Unit

Quantity

Remarks

Spanner

Bundle

2

17*19,12*14

Phillips screwdriver

Bundle

1


Hexagon spanner 4,6

Bundle

2


Hexagon screws

Pcs

5

M6*25

Fuse

Pcs

2


Footing

Set

8

Double station

Footing

Set

8

Double station

Galvanized tube

pcs

1

Single station

Galvanized tube

Pcs

2

Double station

PVC bracket

Pcs

2

Single station

PVC bracket

Pcs

4

Double station

Connection cross-bar for PVC bracket

Pcs

3

Single station

Connection cross-bar for PVC bracket

Pcs

6

Double station

Slot type screwdriver

Bundle

1


Limit Switch

Pcs

2




TM4500-01


Warranty

1. The supplier will provide free consultation and troubleshooting for repair, maintenance.

2. The warranty does not include: damage caused by man-made and natural disasters. (such as fire, flood, earthquake)

3. If the equipment occurs error, The supplier shall provide free qualified parts and maintenance during the warranty period; outside the warranty period, the supplier shall provide the consultancy service,include but not  limited to assistances by fhotograph, videos,calls as well as services through social communication softwares like WhatsApp, Skype, etc.

4. The supplier shall send technicians to the demander to install and debug the equipment($200/DAY borne by foreign client for our technicians travelling on business overseas,if necessary) and train the demander's personnel in practical operation, processing and maintenance.
