TM3000P-3
ZHT

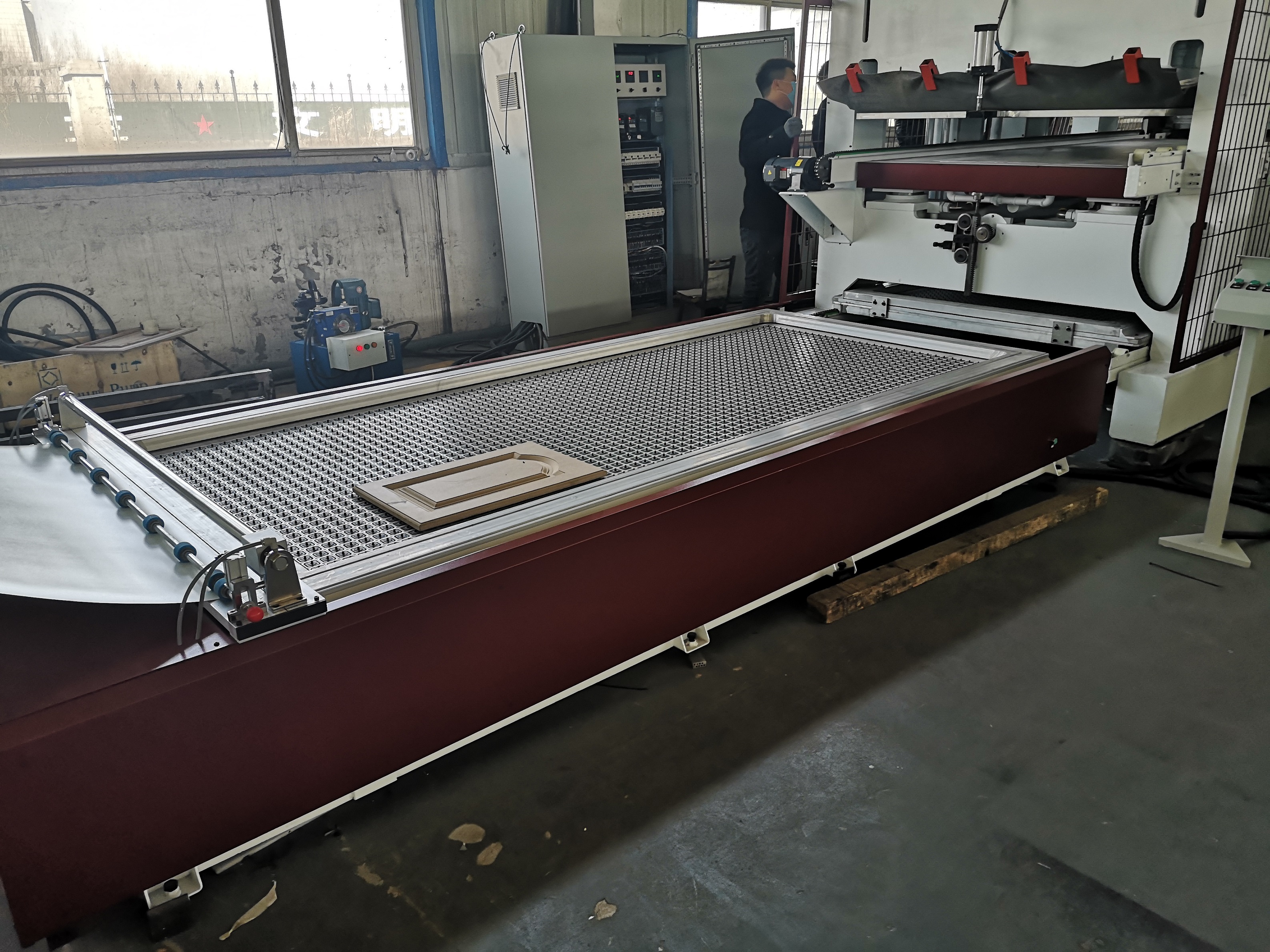

3D Vacuum Press Machine
Description

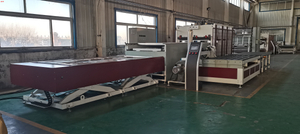

1 The assembly line circulates the station, optimizes the production structure, and separates the area where the workpiece is placed from the finished product, which greatly improves the work efficiency of the assembly line. The equipment requires only three people to operate at full load, creating more value for factory workers.
2 one working cycle is less than 2 mins when high gloss and common workpiece enter the main machine and out of main machine.
It`s 2-4 times efficiency than ordinary positive and negative press machine .
3 The grooves of the finished product of the ordinary film are clear and in place, no open edges, blistering, no color difference, and strong adhesion on high-gloss working surfaces.
4 The effect can reach the international leading high level.
5 high configuration: The key part imported from Germany / Japan / Taiwan China, high configuration and stable performance.
6 High working efficiency: The whole machine adopts a fully automatic top block, compare with other manufacturer`s machine ,we reduce the process of making bottom pad , save the raw material costs, reduce the sequence of scan machine , save the working time, increasing working efficiency, reduce labor costs.
7 The machine was equipped with an automatic rack roll for select pvc , automatic pad device, press membrane device , a tray lifting device , a finished product flipping mechanism and a trimming product worktable.
8 The degree of automation is high and process in smooth, compact , one- stop press membrane process production.
The height of top block can select 12mm,15mm,18mm, solve the problem of high-gloss sample is not in place
Te c h n i c a l p a r a m e t e rs
Standard placement dimension | 15000mm*5300mm*2820mm | Rated working pressure | Positive pressure≤0.6Mpa Negative pressure≥-0.095Mpa |
Main machine dimension | 4000mm*2200mm*2300mm | Max working height | 50mm |
Unloading table size | 4100mm*1800mm*600mm | Total power | 43KW |
Turning table size | 3000mm*2200mm*1400mm | Weight | 26T |
Feeding table size | 3000mm*1500mm*950mm | Power | 380V 50HZ |
Loading table size | 4100mm*1800mm*600mm | Rack roll size | 3100mm*1150mm*2700mm |
How it works
This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine
Preheating equipment
Put product on the workbench
Pull the PVC membrane and cover cabinet door
Cutting membrane
Enter the machine
The membrane floating up and heating
Vacuum plus negative pressure
Release of negative pressure
Unloading hydraulic
Drop workbench
Workbench out
Cut membrane
Work end
This process is done automatically by one click
Silicone plate life
The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)
Warranty
1. In order to ensure that the requester can use the equipment normally, the warranty period is one year, except for consumables (pressure buckle, gas strut). The supplier will provide free warranty service during the warranty period, non warranty period provide free consultation and troubleshooting for repair, maintenance. The warranty period is calculated from the day when the equipment is shipped.
2. The warranty does not include: damage caused by man-made and natural disasters. (such as fire, flood, earthquake)
3. If the equipment occurs error, The supplier shall provide free qualified parts and maintenance during the warranty period; outside the warranty period, the supplier shall provide the demand at a preferential price for a long time. The cost incurred by the supplier for maintenance shall be settled by both parties through negotiation
4. The supplier shall provide technical support to the requester to install and debug the equipment, and train the requester` personnel in practical operation, processing and maintenance
Quality and Service are most important things for us
If you have any problem,please let us know
