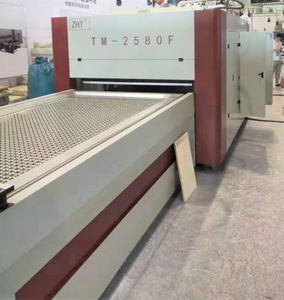

Positive And Negative Pressure Vacuum Membrane Press Laminating Machine

Quantity:
  • TM2580F-P
  • ZHT

Positive And Negative Pressure Vacuum Membrane Press Laminating Machine


TM2580F-P-004

parameter

Dimensions

11200mm×2480mm×2150mm

Bed dimension

2560mm×1270mm

Maximum machining height

50mm

Rated working pressure

positive pressure≤0.6Mpa  negative pressure≥-0.095Mpa

Total power

28Kw

Actual power consumption

about 10kw

Total weight

14T

Power

380V  50HZ


Hardware Configuration

Rack

The whole steel plate is cutting

Diameter of oil tank

180mm

Cylinder structure

Solid

Cylinder structure

200mm

Hydraulic system

TaiWan

Heating method

Electrical heating (nano technology)

Vacuum pump(import)

SV100

Relay(import)

Schneider


微信图片_20190717141843

Samples

cabinet door     kitchen door


 handleless door   kitchen door samples

Features

1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.

2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.

3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; The main heating starting power is 15KW, and the average power consumption is 8KW/h.

4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.


PIN SYSTEM

Upgrade improvements



1. The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.



2. The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.



3. The lifting balance system is easy to adjust, and the rise and fall are more stable.



4. Hydraulic system oil port improvement and maintenance is more convenient.



5. The aluminum frame is processed by one body, and no weld seam increases the strength.
