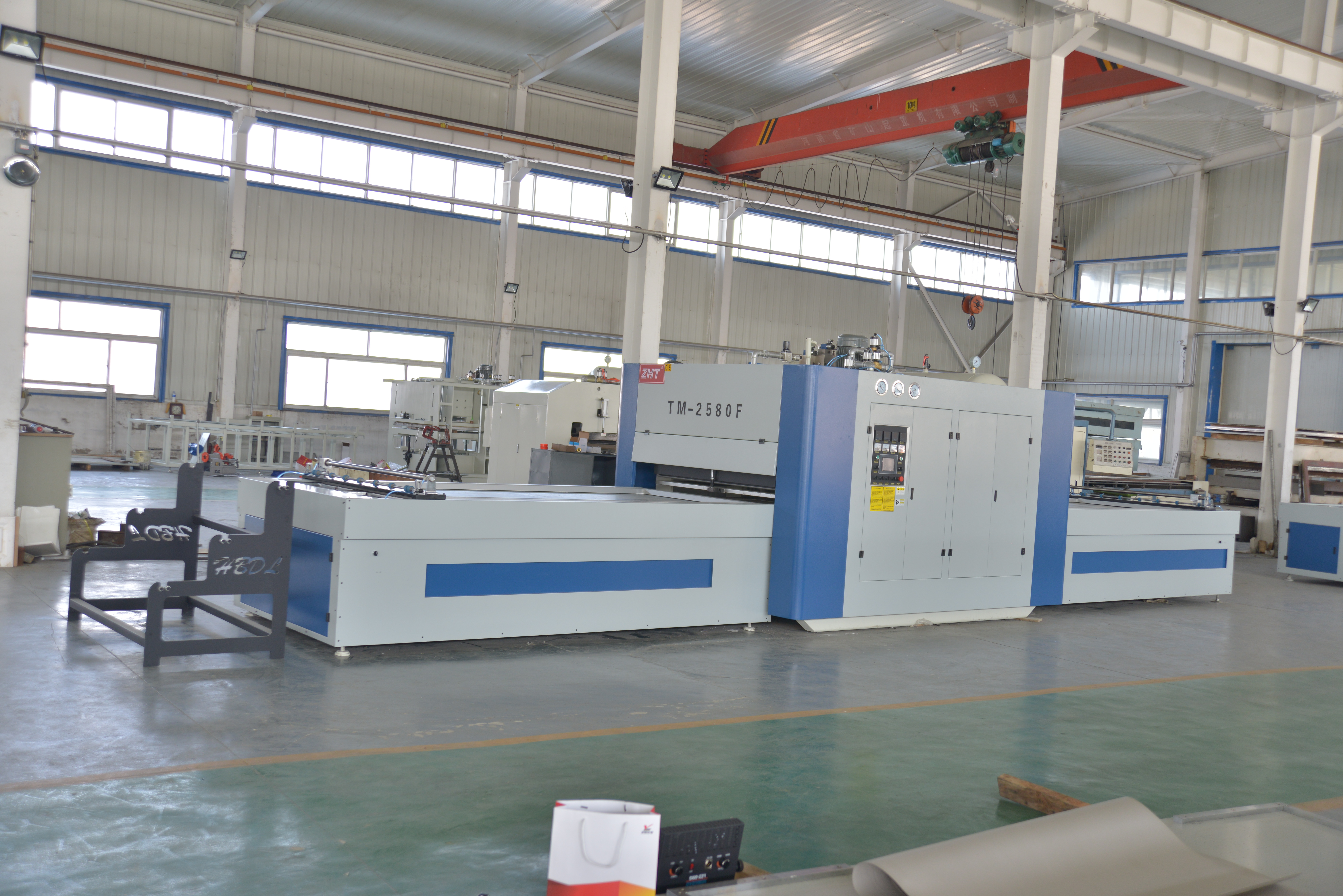

Cutting-edge Vacuum Membrane Pressed Machine TM2580F For Wood Door and Cabinet

TM-2580F Vacuum Upper Pressure Membrane Machine specification

Features
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; The main heating starting power is 15KW, and the average power consumption is 8KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.

Quantity:
  • TM2580F
  • ZHT

2580-002


Technical parameter


Dimensions  11200mm×2480mm×2150mm
Bed dimension  2560mm×1270mm
Maximum machining height  50mm
Rated working pressure positive pressure≤0.6Mpa  negative pressure≥-0.095Mpa
 Total power  28Kw
Actual power consumption about 10kw
 Total weight  14T
Power  380V  50HZ


TM2580F图

Hardware Configuration


Rack The whole steel plate is cutting
Diameter of oil tank 180mm
Cylinder structure Solid
Cylinder structure 200mm
Hydraulic system TaiWan
Heating method Electrical heating (nano technology)
Vacuum pump(import) SV100
Relay(import) Schneider



Upgrade improvements



The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.



The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.



The lifting balance system is easy to adjust, and the rise and fall are more stable.



Hydraulic system oil port improvement and maintenance is more convenient.



The aluminum frame is processed by one body, and no weld seam increases the strength.


Workpiece Display




cabinet suction001   cabinet suction003   cabinet suction005


Equipment maintenance



every 3-6 months, the vacuum pump changes oil once, and the filter is cleaned every 15 working days;



How it works



This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine


 Preheating equipment

v    Put product on the workbench

Pull the PVC membrane and cover cabinet door

Cutting membrane

Enter the machine

The membrane floating up and heating

Vacuum plus negative pressure plus positive pressure

Release of positive and negative pressure

Unloading hydraulic

Drop workbench

Workbench out

Work end


This process is done automatically by one click.





2580F005




Silicone plate life



The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)



Silicone plate size


This machine is equipped with a silicone plate size of 1.75m*3.05m 3T (thickness)


名片带边框


Quality and Service are most important things for us

If you have any problem,please let us know
