State-of-the-art Model TM3000P-3 for A Extensive Range of Furniture

Standard placement dimension 15000mm*5300mm*2820mm
Rated working pressure Positive pressure≤0.6Mpa Negative pressure≥0.095Mpa
Main machine dimension 4000mm*2200mm*2300mm
Max working height 50mm

Quantity:
  • TM3000P-3
  • ZHT

2


The assembly line circulates the station, optimizes the production structure, and separates the area where the workpiece is placed from the finished product, which greatly improves the work efficiency of the assembly line. The equipment requires only three people to operate at full load, creating more value for factory workers.


One working cycle is less than 2 mins when high gloss and common workpiece enter the main machine and out of main machine. It's 2-4 times efficiency than ordinary positive and negative press machine .


5


The grooves of the finished product of the ordinary film are clear and in place, no open edges, blistering, no color difference, and strong adhesion on high-gloss working surfaces. The effect can reach the international leading high level.


High configuration: The key part imported from Germany / Japan / Taiwan, high configuration and stable performance.


1


High working efficiency: The whole machine adopts a fully automatic top block, compare with other manufacturer`s machine ,we reduce the process of making bottom pad , save the raw material costs, reduce the  sequence of scan machine , save the working time, increasing working efficiency, reduce labor costs.

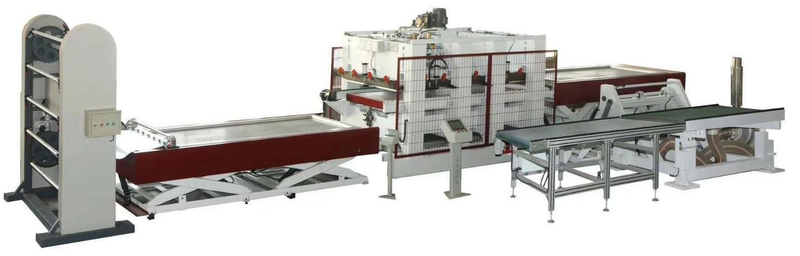

The machine was equipped with an automatic rack roll for select pvc , automatic pad device, press membrane device , a tray lifting device , a finished product flipping mechanism and a trimming product worktable.

The degree of automation is high  and process in smooth, compact , one- stop press membrane process production.



The height of top block can select 12mm,15mm,18mm, solve the problem of high-gloss sample is not in place.


Standard placement dimension

15000mm*5300mm*2820mm

Rated working pressure

Positive pressure≤0.6Mpa

Negative pressure≥0.095Mpa

 Main machine dimension

4000mm*2200mm*2300mm

Max working height

50mm

Unloading table size

4100mm*1800mm*600mm

Total power

43KW

Turning table size

3000mm*2200mm*1400mm

Weight

26T

Feeding table size

3000mm*1500mm*950mm

Power

380V 50HZ

Loading table size

4100mm*1800mm*600mm

Rack roll size

3100mm*1150mm*2700mm
