TM2680A
ZHT

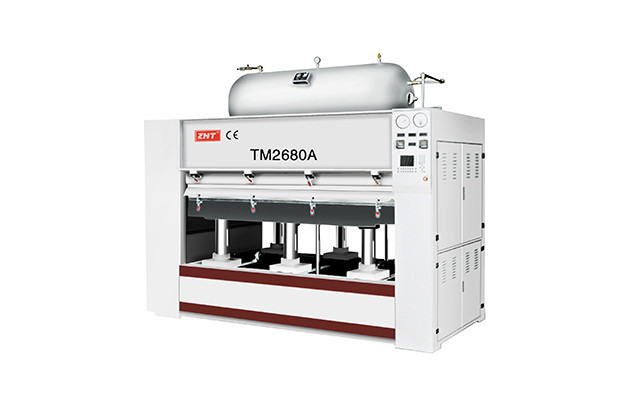

TM2680A Solid wood veneer positive negative pressure curved surface press machine
Function
The professional solid wood veneer lamination equipment has the function of positive and negative double pressure at the same time, it is equipped with the special silicon rubber board, and can finish the veneer of the double-sided wood veneer of the door core board at the same time.
Features
The key parts of hydraulic system adopt the import parts, the safe and reliable technology is excellent.Cylinder divided into lift and pressure of two groups, this structure to reduce cylinder wear.
The equipment operation control system is controlled by imported PLC with advanced technology and high automation.
Vacuum pump is imported from Germany.Higher horsepower, low failure rate.Give full play to vacuum characteristics.
Technical parameter
| Dimensionshao | 3000mm*1500mm*2650mm |
| Bed dimension | 2040mm*1080mm（inner diameter） |
| Maximum machining height | 50mm |
| Rated working pressure | positive pressure ≤0.5Mpa negative pressure ≥-0.095 Mpa |
| Total power | 41.2KW |
| Actual power consumption | About 13KW |
| Total weight | 10T |
